10mm Tube OD Gauge Connector Fitting - SGCI Series
10mm Tube OD Gauge Connector Fitting - SGCI Series
SKU:SGC-c32abc
Enhance safety and productivity with the SGCI Series 10mm Tube OD Gauge Connector Fitting. Patented i-Fitting® technology for perfect compression.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
10mm Tube OD Gauge Connector Fitting - SGCI Series
$34.99
Quantity: 1
Claim Your Seller Account
10mm Tube OD Gauge Connector Fitting - SGCI Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SGCI Series 10mm Tube OD Gauge Connector Fitting is a precision-engineered component that seamlessly connects metric tubes to ISO parallel threads. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in demanding industrial settings. Featuring patented i-Fitting® technology with a check ring for perfect compression, this fitting enhances safety, productivity, and cost-efficiency. With dimensions designed for optimal performance and compatibility, the SGCI Series is a game-changer for valve connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

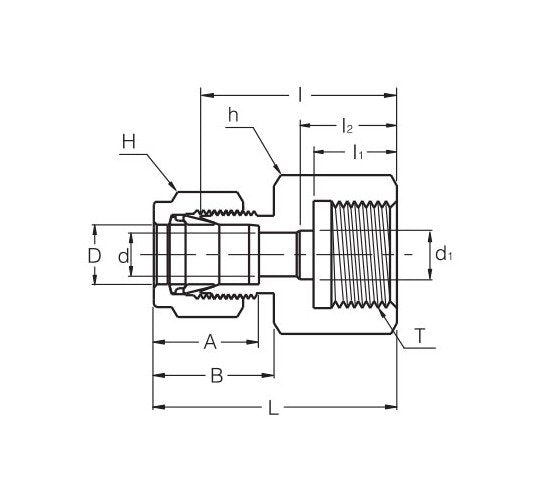

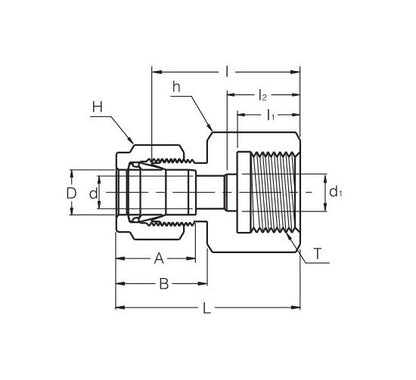

Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension D1
5.5 mm
Technical Specs Dimension I
31.8 mm
Technical Specs Dimension I1
13 mm
Technical Specs Dimension L
39.4 mm
Technical Specs Dimension T Pf
1/4 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
5.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
