10mm Tube OD Union Cross Fitting - SUCI Series
10mm Tube OD Union Cross Fitting - SUCI Series
SKU:SUC-f18767
Efficiently connect metric tubes with the durable and safe 10mm Tube OD Union Cross Fitting from the SUCI Series, featuring i-Fitting® components.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
10mm Tube OD Union Cross Fitting - SUCI Series
$34.99
Quantity: 1
Claim Your Seller Account
10mm Tube OD Union Cross Fitting - SUCI Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

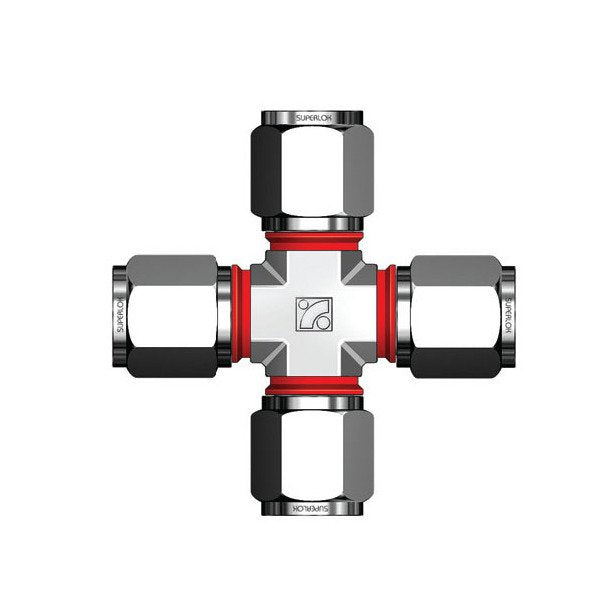

The SUCI Series 10mm Tube OD Union Cross Fitting is a durable and efficient solution for connecting metric tubes in various applications. Crafted from high-quality Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this fitting ensures reliable performance and longevity. It features i-Fitting® components including body, ferrules, nut, identification band, and a check ring for optimal compression and safety. Engineered to enhance installer safety, productivity, and cost-efficiency in high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

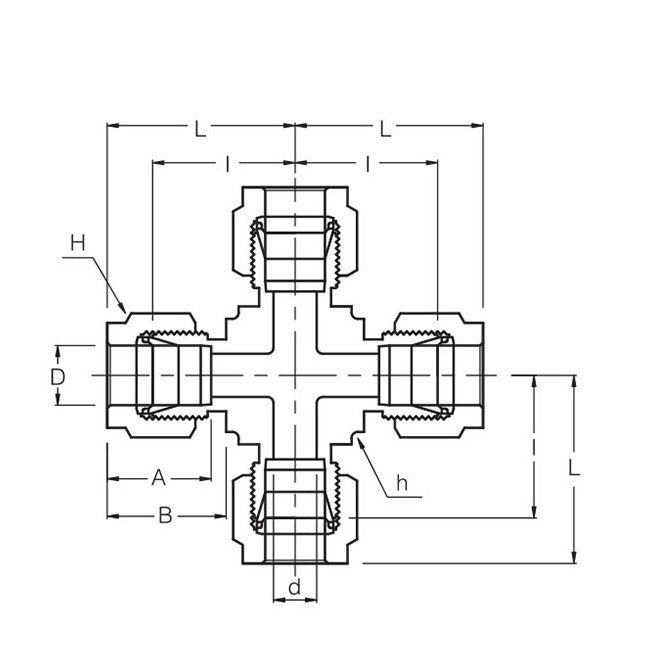

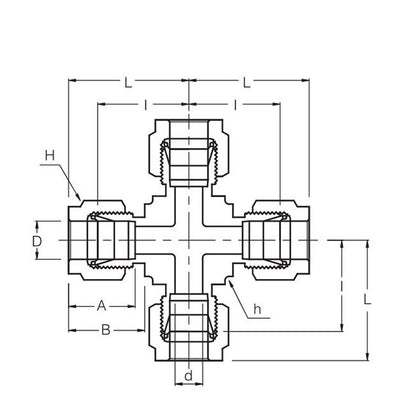

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
33.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
