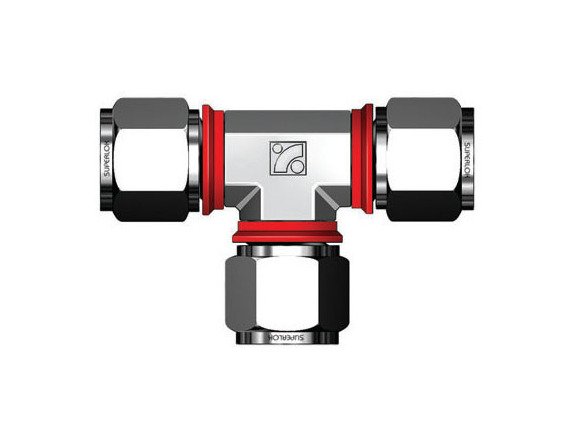

10mm Tube OD Union Tee Fitting - SUTI Series
10mm Tube OD Union Tee Fitting - SUTI Series
SKU:SUT-22f564
Enhance tube connections with the precision-engineered 10mm Tube OD Union Tee Fitting from the SUTI Series. Improve safety and efficiency in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
10mm Tube OD Union Tee Fitting - SUTI Series
$29.99
Quantity: 1
Claim Your Seller Account
10mm Tube OD Union Tee Fitting - SUTI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUTI Series 10mm Tube OD Union Tee Fitting is a robust solution for connecting metric tubes seamlessly. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting features innovative i-Fitting® components that enhance installation precision and safety. With a built-in gap gauge check ring, this fitting ensures perfect compression, minimizing the risk of over- and under-tightening. Ideal for high-pressure and chemical environments, this industry-changing design by BMT boosts productivity, reduces costs, and meets stringent government procurement standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

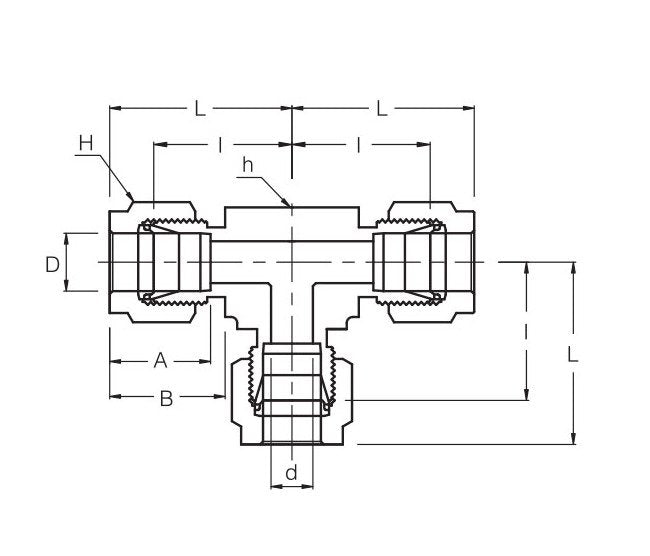

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
23.9 mm
Technical Specs Dimension L
31.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
