10mm UM10 Grade Carbide Rod, Precision Ground, Two Hole, 40 Degree
10mm UM10 Grade Carbide Rod, Precision Ground, Two Hole, 40 Degree
SKU:SOL-d99c6a
10mm UM10 Grade Carbide Rod, Precision Ground, Two Hole, 40 Degree - Ideal for precision machining tasks.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
10mm UM10 Grade Carbide Rod, Precision Ground, Two Hole, 40 Degree
$59.99
Quantity: 1
Claim Your Seller Account
10mm UM10 Grade Carbide Rod, Precision Ground, Two Hole, 40 Degree
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

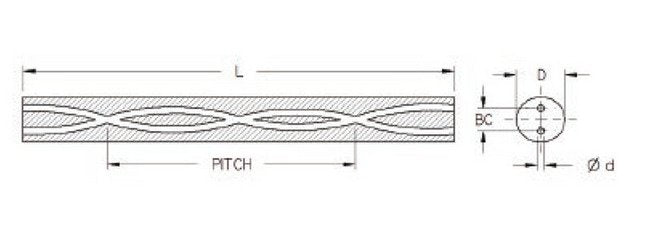

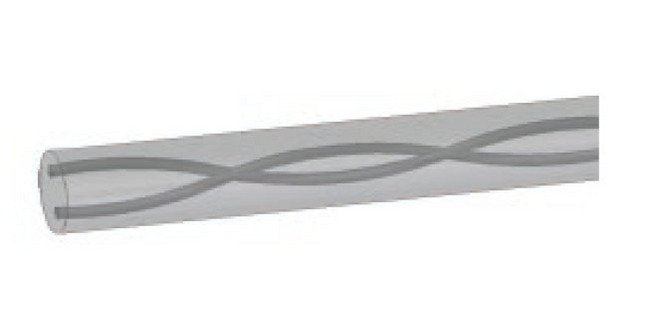

The 10mm UM10 Grade Carbide Rod boasts exceptional precision and durability for industrial applications. With a polished finish, 330mm length (+5mm | 0mm tolerance), and a 40-degree pitch, this rod is ideal for machining tasks requiring high accuracy. Featuring a 0.80mm hole diameter with a tolerance of ±0.15mm and a Between Centers diameter of 3.1mm ±0.40mm, this carbide rod is crafted to meet stringent quality standards. Weighing 0.46kg, this rod adheres to ISO tolerance Type h6, ensuring consistent performance. Make every machining operation a success with this reliable carbide rod.
Product Specifications
Classifications Between Centers Bc Diameter
3.1 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
10 mm
Classifications Finish
Polished
Classifications Hole D
0.80 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
37.44 mm
Classifications Shipping Weight
0.460012355 Kilogram
