10mm UM12 Grade Carbide Rod
10mm UM12 Grade Carbide Rod
SKU:SOL-da2aa5
Ultra-Met® 10mm UM12 Grade Precision Ground Carbide Rod - High-quality, precise, and durable for exacting applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
10mm UM12 Grade Carbide Rod
$45.99
Quantity: 1
Claim Your Seller Account
10mm UM12 Grade Carbide Rod
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

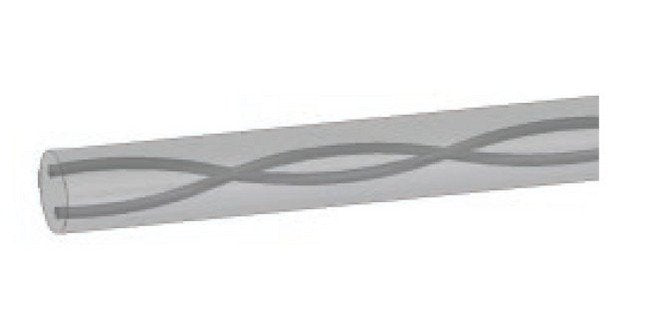

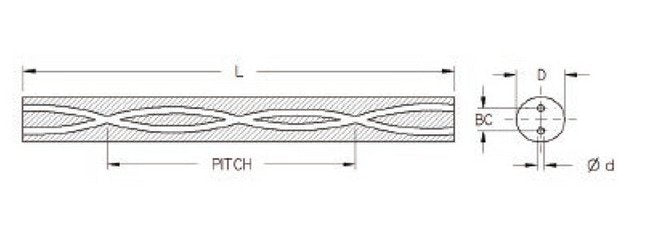

The 10mm Diameter UM12 Grade Two Hole 40 Degree Precision Ground Carbide Rod is a high-quality product from the Ultra-Met® brand. This polished carbide rod has a length of 330mm with a tight length tolerance of +5mm | 0mm, making it ideal for precision applications. With a 0.80mm hole diameter and a pitch of 37.44mm, this rod is designed to meet exacting standards. Its UM12 carbide grade ensures durability and reliability. This rod conforms to h6 ISO tolerance type, guaranteeing consistent performance. Suitable for a range of applications, this carbide rod is a top choice for professionals seeking precision and quality.
Product Specifications
Classifications Between Centers Bc Diameter
3.1 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
10 mm
Classifications Finish
Polished
Classifications Hole D
0.80 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
37.44 mm
Classifications Shipping Weight
0.460012355 Kilogram
