10mm UM6 Grade Precision Ground Carbide Hole Rod
10mm UM6 Grade Precision Ground Carbide Hole Rod
SKU:SOL-516fdc
Ensure precision and durability with the 10mm UM6 Grade Precision Ground Carbide Hole Rod. Ideal for industrial machining applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10mm UM6 Grade Precision Ground Carbide Hole Rod
$49.99
Quantity: 1
Claim Your Seller Account
10mm UM6 Grade Precision Ground Carbide Hole Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

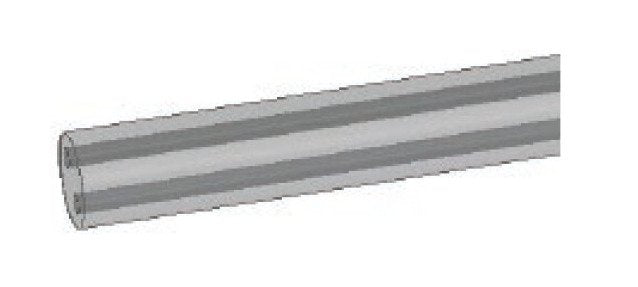

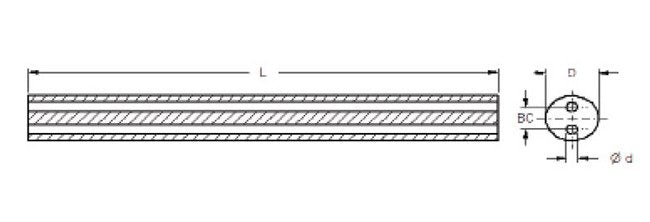

The 10mm UM6 Grade Precision Ground Carbide Hole Rod is crafted for exceptional precision and durability. Featuring a polished finish, this carbide rod boasts a diameter of 10mm with a length of 330mm (+5mm | 0mm tolerance). The 1.00mm hole diameter with ±0.15mm tolerance and 2.6mm Between Centers (BC) Diameter make it ideal for various machining applications. Compliant with ISO tolerance type h6, this rod is a reliable choice for industrial needs, ensuring top-notch performance and longevity.
Product Specifications
Classifications Between Centers Bc Diameter
2.6 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
10.00 mm
Classifications Finish
Polished
Classifications Hole D
1.00 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
0.419143489 Kilogram
