10ST, Tenney Strat Altitude Chamber
10ST, Tenney Strat Altitude Chamber
SKU:TEN-00109f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Claim Your Seller Account
10ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

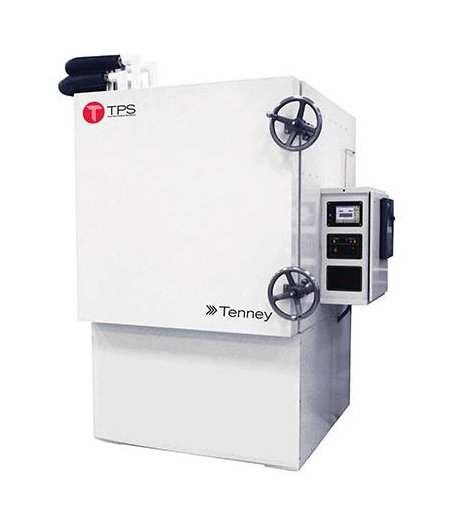

Tenney’s Tenney Strat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5- to 64-cubic-feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry. We are confident that our solid altitude chamber construction and precise operating systems will provide the exacting performance and a high degree of reliability for your altitude testing needs.
Product Specifications
Specifications Cooling Water Flow Rate 20c
3 gpm | 6 gpm
Specifications Current
48 A | 81 A
Specifications Exterior Depth
203 in | 99 in | 2515 mm | 5156 mm
Specifications Exterior Height
84 in | 210 in | 2134 mm | 5334 mm
Specifications Exterior Width
130 in | 51 in | 1295 mm | 3302 mm
Specifications Features
Continuously welded, stainless steel, vapor-tight interior liners | Control tolerance is ±0.3°C and ±2% RH typical after stabilization | Linear pressure transducer to measure altitude | Non-corroding humidity system | Low-water protection on humidity system | Vertical-down recirculating conditioning stream
Specifications Fuse Current
70 A | 110 A
Specifications Heater Capacity
4
Specifications Humidifier
1 W | 0.5 gph
Specifications System Horsepower
6 hp | 15 hp
Specifications Voltage
230 V
Specifications Weight
3150 lb | 1429 kg
Specifications Workspace Depth
24 in | 61 in | 610 mm | 1549 mm
Specifications Workspace Height
30 in | 76 in | 762 mm | 1930 mm
Specifications Workspace Width
24 in | 61 in | 610 mm | 1549 mm
