11.0mm M5 CSK Rivet Nut - P-Series

Name: 11.0mm M5 CSK Rivet Nut - P-Series
Brand: Ornit USA
SKU: PSE-a6744c
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-a6744c

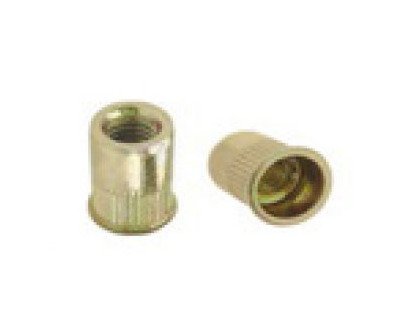

Premium P-Series 11.0mm M5 CSK Rivet Nut - Steel, Yellow Zinc Plated, Open End, Countersunk Head (CSK). Versatile grip range for secure fastening.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The P-Series 11.0mm Dimension L and M5 Thread Size Open End Countersunk Head (CSK) Rivet Nut is a high-quality fastening solution for industrial applications. Crafted from steel with a yellow zinc plated finish, this rivet nut ensures durability and corrosion resistance. It features a minimum grip range of 0.5mm and a maximum grip range of 1.5mm, making it versatile for various material thicknesses. With options for Stainless Steel and Aluminum materials and serration style, this rivet nut offers flexibility and precision in fastening.

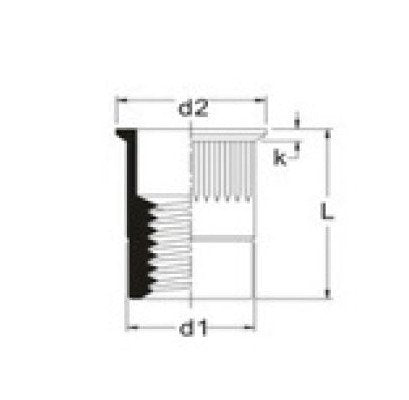

Product Specifications

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

11.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

11.0mm M5 CSK Rivet Nut - P-Series
