11% Tensile Elongation Engineering Plastic Composite
11% Tensile Elongation Engineering Plastic Composite
SKU:ENG-b158c4
High-quality Engineering Plastic Composite with 11% Tensile Elongation, ideal for IC trays, technical parts, and more.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
11% Tensile Elongation Engineering Plastic Composite
$39.99
Quantity: 1
Claim Your Seller Account
11% Tensile Elongation Engineering Plastic Composite
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

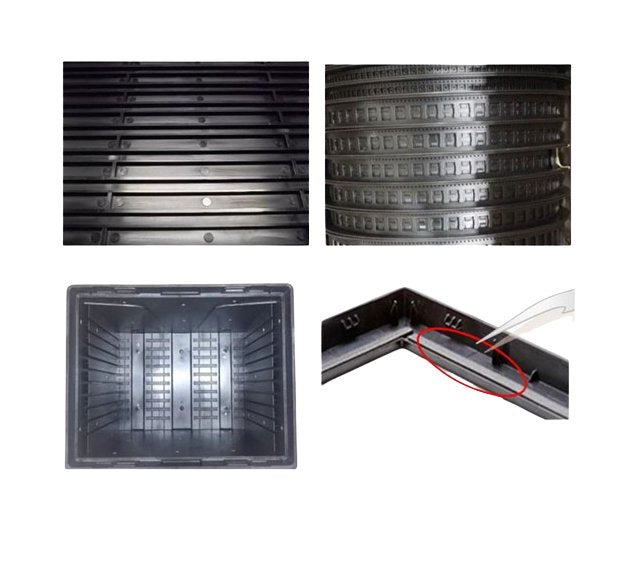

Our 11% Tensile Elongation Engineering Plastic Composite is a highly versatile material suitable for a wide range of applications, from IC trays to electronic parts. With a minimized conductive filler content, it preserves the specific properties of compounded resins. Tested to meet ASTM standards for specific gravity, tensile strength, flexural modulus, and more, this composite offers exceptional performance and dimensional stability. Ideal for institutional use due to its strength, electrical conductivity, and thermal stability.
Product Specifications
Additional Information
Optimum compound can be provided by CNT dispersion and base material suitable to customer requirements.Dimensional stability, strength characteristics, gloss control, excellent heat distortion characteristics, etc.CNT is known as having excellent electrical conductivity, thermal conductivity, strength, and thermal stability. Demand for Li-ion Battery as positive electrode conductive additives has been increasing and CNT is also being used in applications such as tire treads and antistatic resins.Kumho's CNT have a highly oriented bundle structure and have been used by major battery manufacturers and tire manufacturers globally. Multiple grades of CNT are available depending on required property and each application, and we also have various types of rubber and resin compound and masterbatches.Kumho Petrochemical with one of the world's largest synthetic rubber manufacturing capacities was established in 1970 and developing their business in several fields including synthetic resins, specialty chemicals, nanocarbons, energy, and building materials.Major application with Kumho's CNTLi-ion Battery as positive electrode conductive additives for automotiveTire treadsElectronic Parts TraysConductive coatingElectro-Magnetic Interference (EMI) Shielding CompositeConductive resin/rubber
Applications Applications
Bezel | Case | Technical Parts
Applications Surface Resistance
105~107 Ω/sq.
Properties Flamability 116 Inch In 16 Millimeter Mm
V-1
Properties Flexural Modulus
36,700 kgf/cm²
Properties Flexural Strength
1,120 kgf/cm²
Properties Heat Deflection Temperature 186 Kilogram Kgsq
94 ºC
Properties Izod Impact Notched 32 Millimeter Mm
12 kgf·cm/cm
Properties Izod Impact Notched 64 Millimeter Mm
10 kgf·cm/cm
Properties Melt Flow Index 260 Degree Celsius C Temperat
22
Properties Rockwell Hardness R Scale
118
Properties Specific Gravity
1.26
Properties Surface Resistivity At 23 Degree Celsius C Te
5~7 E+Ω/sq
Properties Tensile Elongation At Break
11 %
Properties Tensile Strength
825 kgf/cm²
Properties Test Method For Flamability 116 Inch In 16 Mi
American Society for Testing and Materials (ASTM) UL94
Properties Test Method For Flexural Modulus
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Flexural Strength
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Heat Deflection Temperature 1
American Society for Testing and Materials (ASTM) D648
Properties Test Method For Izod Impact Notched 32 Millim
American Society for Testing and Materials (ASTM) D256
Properties Test Method For Izod Impact Notched 64 Millim
American Society for Testing and Materials (ASTM) D256
Properties Test Method For Melt Flow Index 260 Degree Ce
American Society for Testing and Materials (ASTM) D1238
Properties Test Method For Rockwell Hardness R Scale
American Society for Testing and Materials (ASTM) D785
Properties Test Method For Specific Gravity
American Society for Testing and Materials (ASTM) D792
Properties Test Method For Surface Resistivity At 23 Deg
American Society for Testing and Materials (ASTM) D257
Properties Test Method For Tensile Elongation At Break
American Society for Testing and Materials (ASTM) D638
Properties Test Method For Tensile Strength
American Society for Testing and Materials (ASTM) D638
