Experience precision and efficiency with the 1103 Mini Super Air Nozzle - High-velocity airflow for optimal performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/8 NPT Mini Super Air Nozzle delivers a forceful and concentrated stream of high-velocity airflow, designed for precision applications. With reduced sound levels, air consumption, and force compared to larger nozzles, it ensures efficient operation while maintaining performance. Crafted from Zinc Aluminum alloy, this nozzle meets stringent durability standards and is built to last. Its innovative design utilizes the Coanda effect to amplify compressed air flow, resulting in a high volume, high velocity blast of air at minimal consumption. Ideal for applications such as air assist, liquid blowoff, and part cooling, this nozzle offers improved production efficiency and safety, while meeting OSHA noise level and pressure requirements.

Product Specifications

Specifications Advantages

Specifications Air Consumption

10 SCFM | 283 SLPM

Specifications Applications

Specifications Force

9.0 oz | 255 g

Specifications How Air Nozzles Work

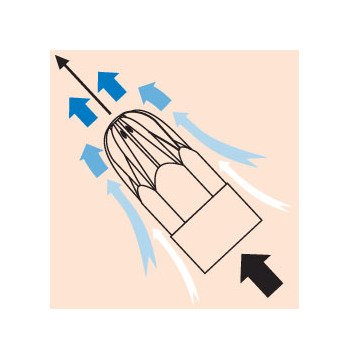

Air Nozzles use the Coanda effect to amplify compressed air flow up to 25 times or more. As illustrated on the right, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

Specifications Inlet

1/8 MNPT

Specifications Material

Zinc Aluminum alloy

Specifications Note

Force measured at 12" (305 mm) from target

Specifications Pressure

80 psig | 5.5 bar

Specifications Selecting The Right Air Nozzle

EXAIR manufactures a wide selection of Air Nozzles and Jets, which are divided into two groups. The first group includes Air Nozzles and Jets that deliver force up to 22 ounces (624 grams) and are suitable for most applications. The second group includes Air Nozzles that produce high force up to 23 lbs (10.43 kg) where additional reach and force are required.Type 303 Stainless Steel - high temperatures and corrosive environments. Max temp 800°F (426°C)Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)Brass - general purpose applications. Max temp 400°F (204°C)Zinc Aluminum Alloy - general purpose applications. Max temp 250°F (121°C)PEEK - replaces metals in harsh environments. Offers chemical resistance, non-marring. Max temp 320°F (160°C)

Specifications Sound Level

71 dBA
