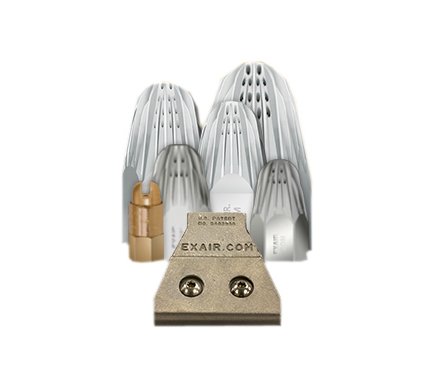

1104-PEEK Super Air Nozzle | High Force Air Nozzle
1104-PEEK Super Air Nozzle | High Force Air Nozzle
SKU:HIG-d6d28b
Powerful 1104-PEEK Super Air Nozzle for efficient blowing force & noise reduction. Ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
1104-PEEK Super Air Nozzle | High Force Air Nozzle
$89.99
Quantity: 1
Claim Your Seller Account
1104-PEEK Super Air Nozzle | High Force Air Nozzle
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial air applications with the 1104-PEEK Super Air Nozzle. This nozzle, made of Polyetheretherketone (PEEK) plastic, generates a powerful force of 1.9 lbs (850g) at 80 psig pressure, with an air consumption of 35 SCFM. It features protective aerodynamic slots for efficient airflow convergence, resulting in enhanced blowing performance and a reduced noise level of 82 dBA. Ideal for chip removal, part cleaning, and more, this compact nozzle not only improves production efficiency but also meets OSHA noise and pressure requirements, ensuring workplace safety and compliance.
Product Specifications
Specifications Advantages
10 dBA Average Noise Reduction | Compact | Conserve Compressed Air | Improved Blowoff Performance | Improved Production | Improved Safety | Meets OSHA Noise Level Requirements | Meets OSHA Pressure Requirements | Reduced Compressed Air Cost
Specifications Air Consumption
35 SCFM | 991 SLPM
Specifications Applications
Air Assist | Chip Removal | Fiber Conveying | Liquid Blowoff | Material Conveying | Part Cleaning | Part Cooling | Part Drying | Part Ejection
Specifications Force
1.9 lb | 850 g
Specifications Inlet
3/8 FNPT
Specifications Material
Polyetheretherketone (PEEK) (Plastic)
Specifications Note
Force measured at 12" (305 mm) from target
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
82 dBA
