110m Anaconda HD Downhole Camera for Pipe & Duct Inspection
110m Anaconda HD Downhole Camera for Pipe & Duct Inspection
SKU:PIP-107182
Versatile, durable, and efficient 110m HD downhole camera for comprehensive pipe and duct inspections.
Regular price
$4,499.99
Regular price
Sale price
$4,499.99
Unit price
per
Initiate Order
110m Anaconda HD Downhole Camera for Pipe & Duct Inspection
$4,499.99
Quantity: 1
Claim Your Seller Account
110m Anaconda HD Downhole Camera for Pipe & Duct Inspection
$4,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

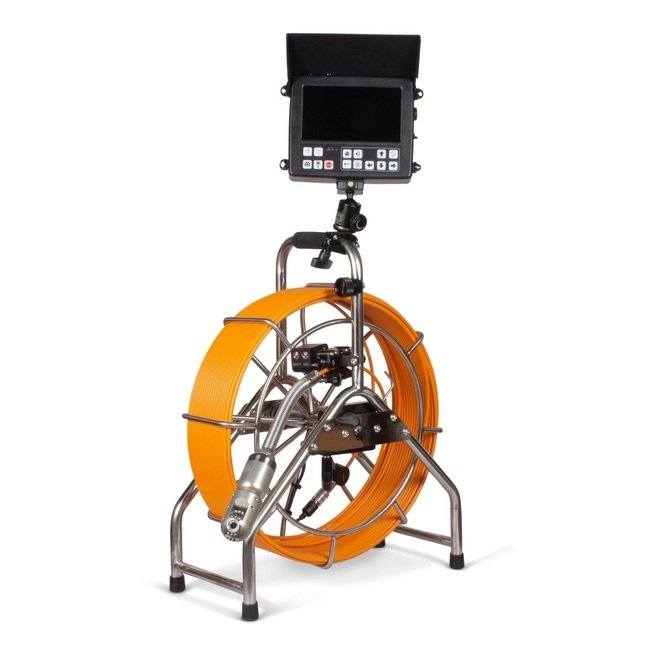

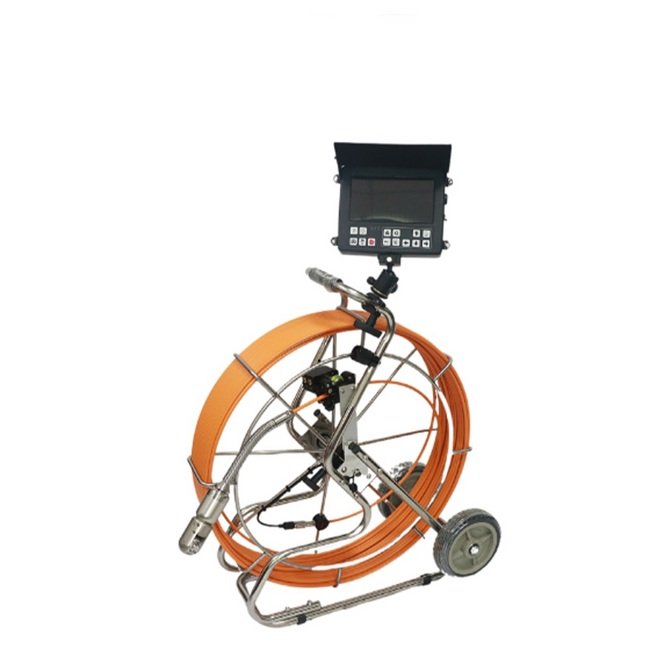

The 110m Anaconda HD Downhole Camera is a versatile and affordable solution for inspecting downhole pipes, designed with durability and efficiency in mind. Equipped with a choice of interchangeable pan-and-tilt or dual-view camera heads, this camera system is ideal for a wide range of applications such as well casing inspections, drainage surveys, plumbing, and sewer applications. With features like a scratch-resistant sapphire lens, industrial-grade steel frame, super bright LED illumination, and a waterproof, reinforced flexible cable with a length of 110 meters (360 feet), this camera ensures thorough and detailed inspections in various environments. The system includes an 8-inch color HD IPS LSD monitor with a rechargeable battery, USB stick, wireless keyboard, and microphone, making it a comprehensive and user-friendly solution for professionals.
Product Specifications
Additional Information

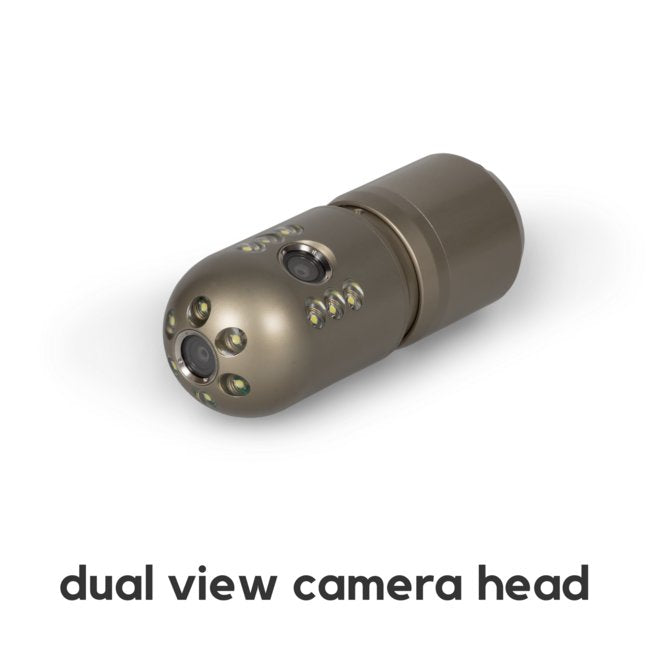

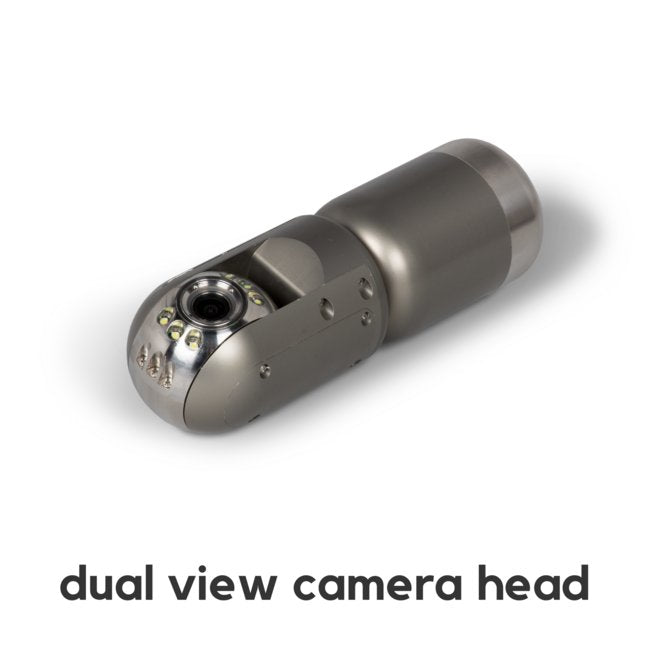

The ANACONDA HD Downhole Camera is a versatile and affordable unit for inspecting downhole pipes. It is a modular design and can be equipped with either a pan-and-tilt or dual-view camera head, making it ideal for inspecting sewers, drains, ducts, manholes, culverts, wells, and tanks. The camera's image sensor is protected by a scratch-resistant sapphire lens; the head is machined out of durable aluminum and stainless steel. These interchangeable camera heads are perfect for situations that require a different camera head due to damage or contamination. The dual-view camera head has a smaller diameter and built-in front and side view camera sensors, allowing you to pan around 360 degrees to capture every detail of the inspection area. Six extra-bright LEDs are incorporated into both the front and side views. The pan-and-tilt camera head is slightly larger and provides a more extensive viewing range. In the front, it features six extra-bright LEDs for intense illumination. The waterproof, reinforced flexible cable, which comes in a length of 110 meters (360 feet), has a diameter of 6.5mm (0.25 inches). The DVR box is weatherproof and comes with an 8.0-inch color HD IPS LSD screen, a rechargeable battery, a USB stick, a wireless keyboard, and a microphone. Sturdy footage counter tracts the cable length and displays it on the screen. A bracket/skid is included to keep the camera in the center and allow panning or tilting. For inspecting larger pipes, a special expanding steel roller skid is available. Overall, the ANACONDA HD Downhole Camera is a sturdy and quality system that is perfect for inspecting well casings, water mains, road drainage systems, ducts, and pipelines.
Applications
Well Casing InspectionsDrainage SurveysPlumbing and Sewer ApplicationsConstruction Surveys Manhole InspectionChimney Inspections
Features
Mechanical BrakeIndustrial Grade Steel FrameSuperbright LED IlluminationUp to 110m/360ft
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Dual View/Pan and Tilt
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
1.77 in | 2 in | 45 mm | 50 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
Yes
Technical Specs Length
361 ft | 110 m
Technical Specs Monitor Size
8 in
Technical Specs Monitor Type
In-Plane Switching Liquid Crystal Display (IPS LCD)
Technical Specs Note
Available for Rent
Technical Specs Sonde Frequency
Yes
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP68)
