113 Series 10in High Expansion Pipe Plug
113 Series 10in High Expansion Pipe Plug
SKU:POW-c0d1c8
Versatile 10in pipe plug for reliable sealing and testing of pipes. Durable, high pressure design.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
113 Series 10in High Expansion Pipe Plug
$149.99
Quantity: 1
Claim Your Seller Account
113 Series 10in High Expansion Pipe Plug
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 113 Series 10in High Expansion Pipe Plug is designed for pipes ranging from 2in to 10in in diameter, offering a robust solution for sealing and testing pipelines. With a maximum inflation of 30 psig and a durable construction, this pipe plug provides higher pressure capabilities compared to typical gas plugs. While customization may be required for perfect pipeline testing seals, its innovative design ensures reliable performance for a wide range of pipe applications.
Product Specifications
Bore Range Maximum Bore Range
3 in | 76.2 mm
Bore Range Minimum Bore Range
1.25 in | 31.8 mm

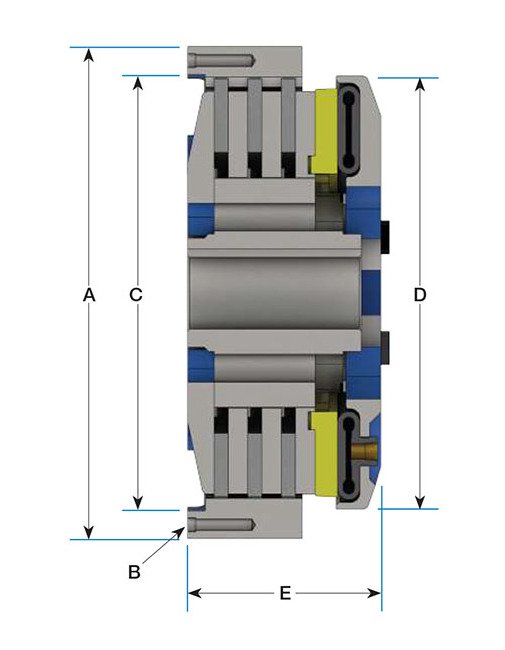

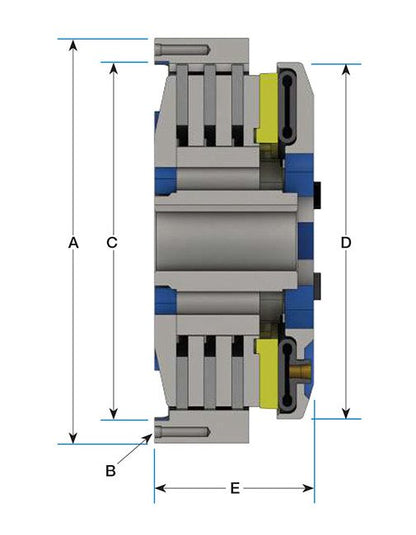

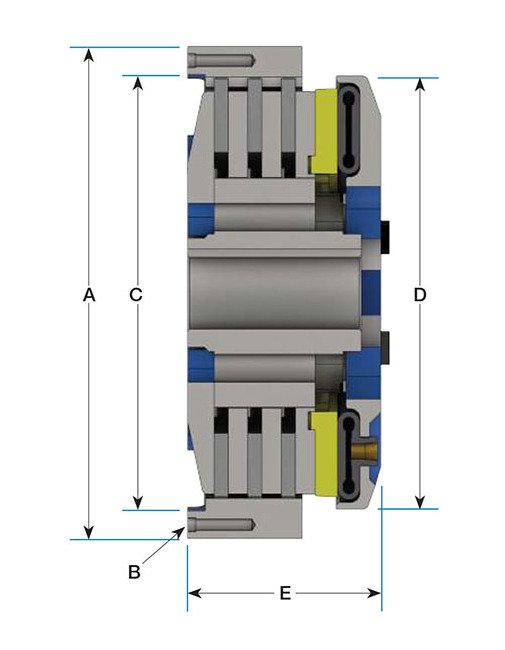

Dimensions Dimension A
14-3/8 in | 365.1 mm
Dimensions Dimension C
12.375 in | 314.33 mm
Dimensions Dimension D
11-15/16 in | 303.2 mm
Dimensions Dimension E
4-1/8 in | 104.8 mm
Dimensions Hole Circle B
13.38 in | 339.7 mm
Dimensions Thread Size B
5/8-11 in
Features Features
Extended Hub Teeth for serviceabilityWave Springs as standard release springOptional standard or quick change driving adaptersOptional split airtubes and friction discs for easier replacement and minimal downtimeAvailable with pneumatic or hydraulic actuationAvailable in high-speed options
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Specifications Lining Area
110 in² | 730 cm²
Specifications Maximum Slip Speed
2080 rpm
Specifications Maximum Speed
2650 rpm
Specifications Quantity
8
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
17000 lbf·in | 1920 N·m
Weight And Inertia Ring And Fd Inertia
5.4 lb·ft² | 0.23 kg·m²
Weight And Inertia Ring And Fd Weight
19 lb | 9 kg
Weight And Inertia Total Inertia
9.2 lb·ft² | 0.39 kg·m²
Weight And Inertia Total Weight
55 lb | 25 kg
