113 Series High Expansion Pipe Plug - 34 Inch Maximum Diameter
113 Series High Expansion Pipe Plug - 34 Inch Maximum Diameter
SKU:POW-fb0edb
Versatile 113 Series Pipe Plug for 34in diameter pipes, robust and secure for high-pressure applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
113 Series High Expansion Pipe Plug - 34 Inch Maximum Diameter
$249.99
Quantity: 1
Claim Your Seller Account
113 Series High Expansion Pipe Plug - 34 Inch Maximum Diameter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 113 Series High Expansion Pipe Plug is designed for pipes with a maximum diameter of 34 inches. With a minimum diameter of 5 inches, this plug offers a high-pressure capacity of 9 psig, making it more robust than typical gas plugs. The inflation port is conveniently located on one side with a tap hole size of 5 inches. This expansion plug is ideal for pipeline applications, ensuring secure sealing and safety during testing. Please note that customization may be required for a perfect seal in certain pipeline testing scenarios.
Product Specifications
Bore Range Maximum Bore Range
3.25 in | 82.6 mm
Bore Range Minimum Bore Range
2.13 in | 54 mm

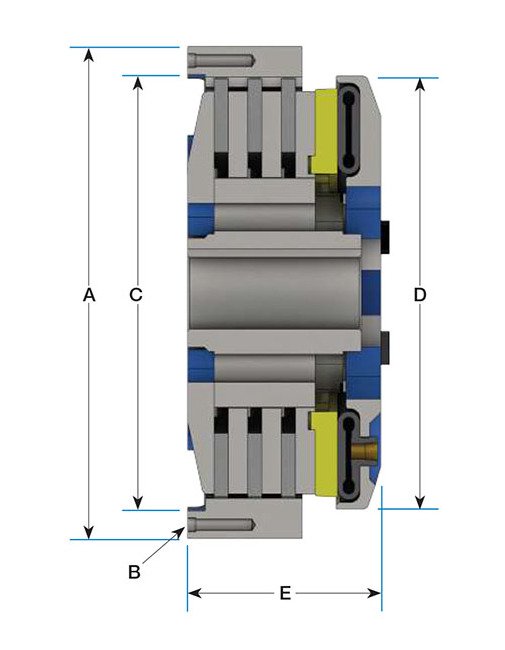

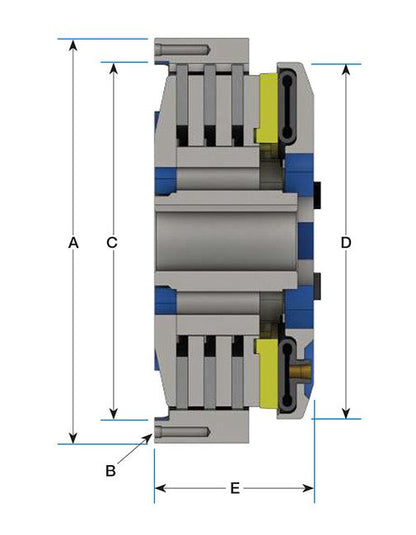

Dimensions Dimension A
17-1/2 in | 444.5 mm
Dimensions Dimension C
15.125 in | 384.18 mm
Dimensions Dimension D
16-5/16 in | 414.3 mm
Dimensions Dimension E
8 in | 203.2 mm
Dimensions Hole Circle B
16.25 in | 412.8 mm
Dimensions Thread Size B
5/8-11 in
Features Features
Extended Hub Teeth for serviceabilityWave Springs as standard release springOptional standard or quick change driving adaptersOptional split airtubes and friction discs for easier replacement and minimal downtimeAvailable with pneumatic or hydraulic actuationAvailable in high-speed options
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Specifications Lining Area
500 in² | 3220 cm²
Specifications Maximum Slip Speed
1640 rpm
Specifications Maximum Speed
2180 rpm
Specifications Quantity
6
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
102000 lbf·in | 11500 N·m
Weight And Inertia Ring And Fd Inertia
42 lb·ft² | 1.8 kg·m²
Weight And Inertia Ring And Fd Weight
97 lb | 44 kg
Weight And Inertia Total Inertia
80 lb·ft² | 3.4 kg·m²
Weight And Inertia Total Weight
290 lb | 130 kg
