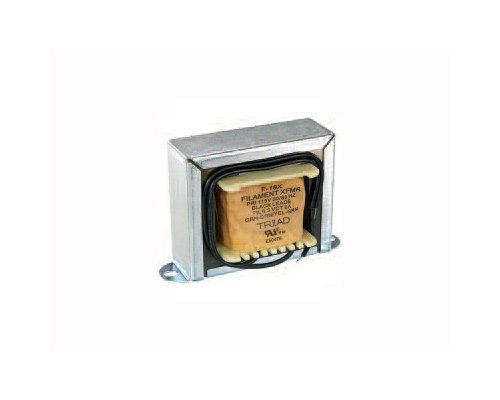

115V Center Tap Chassis Mount Power Transformer
115V Center Tap Chassis Mount Power Transformer
SKU:POW-db884e
High-performance 115V Center Tap Chassis Mount Power Transformer with versatile output options. Ideal for various circuit applications.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
115V Center Tap Chassis Mount Power Transformer
$54.99
Quantity: 1
Claim Your Seller Account
115V Center Tap Chassis Mount Power Transformer
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 115V Center Tap Chassis Mount Power Transformer from the Universal series is a high-performance component designed for integration into full wave center tap or bridge type circuits. With primary voltage at 115V and secondary voltage options ranging from 10-20 CT to 7-30 FWB, this transformer offers versatility in output voltages. It features a Center Tap transformer contact type and is suitable for use with silicon diode rectifiers, making it ideal for supplying DC voltages for transistors in various applications. The compact design and reliable performance make it a top choice for both consumer and institutional buyers.
Product Specifications
Note Note

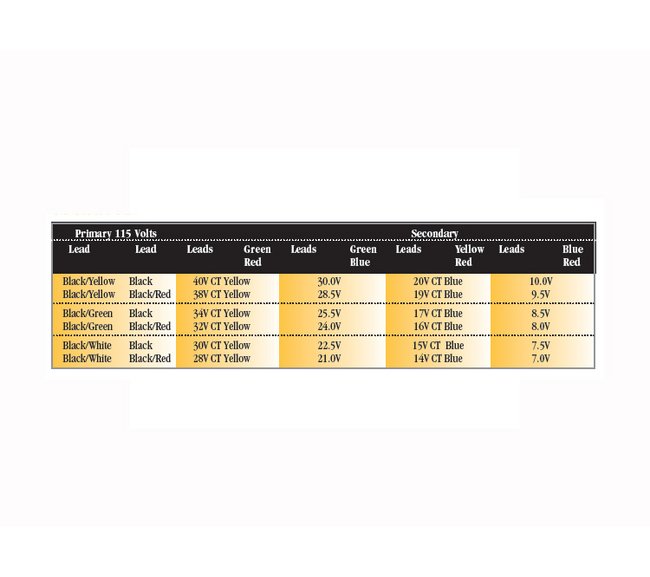

Tapped primary to produce lower voltages
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
2 in
Specifications Height H
2 9/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 1/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current Dc
0.3 A
Specifications Secondary Voltage Ac

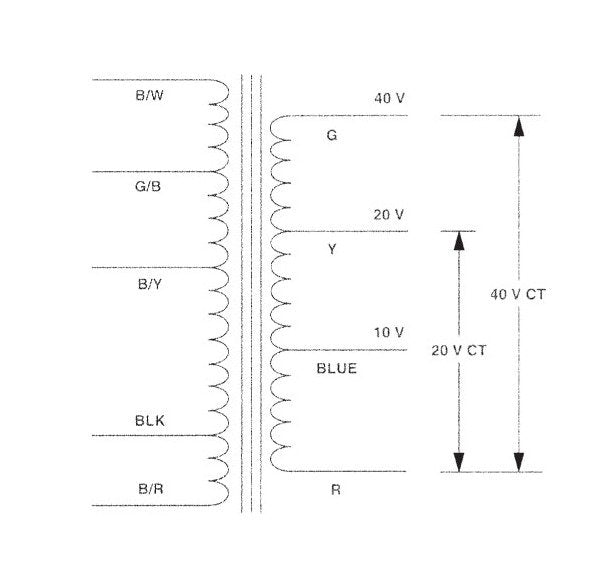

10-20 CT-40 CT | 14 to 40 (FWCT) | 7 to 30 (FWB)
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.50 lb
Specifications Width W
3 11/16 in
