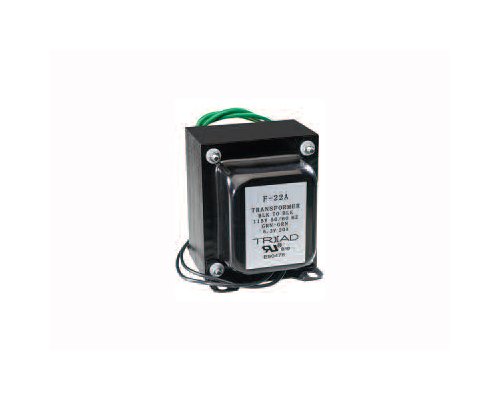

115V Center Tap Universal Chassis Power Transformer
115V Center Tap Universal Chassis Power Transformer
SKU:POW-3f47a3
Enhance power performance with our versatile 115V Chassis Mount Transformer.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
115V Center Tap Universal Chassis Power Transformer
$49.99
Quantity: 1
Claim Your Seller Account
115V Center Tap Universal Chassis Power Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

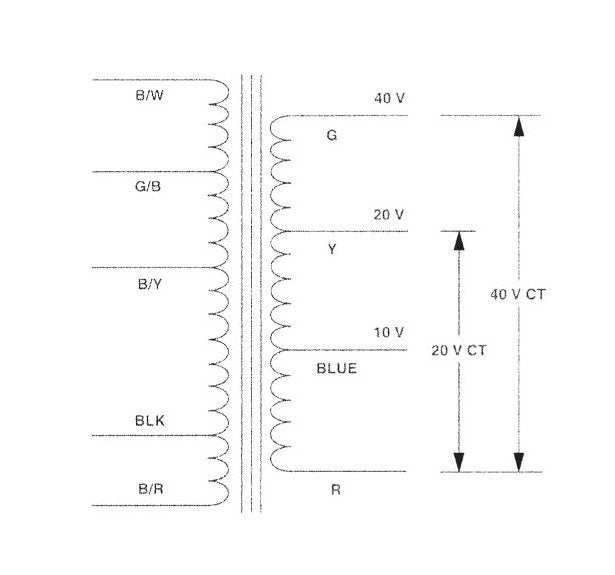

The 115V Center Tap Chassis Mount Power Transformer from our Universal line offers superior performance in full wave circuits with silicon or selenium rectifiers. Designed for seamless integration, this transformer allows for flexible secondary voltage selection using primary taps. With Series F-90 transformers, multiple output voltages can be achieved, perfect for powering transistors in diverse applications. Ideal for use with silicon diode rectifiers, this transformer is compatible with full wave center tap or bridge rectifiers, and can also work with voltage doubler circuits at half the rated current.
Product Specifications
Note Note

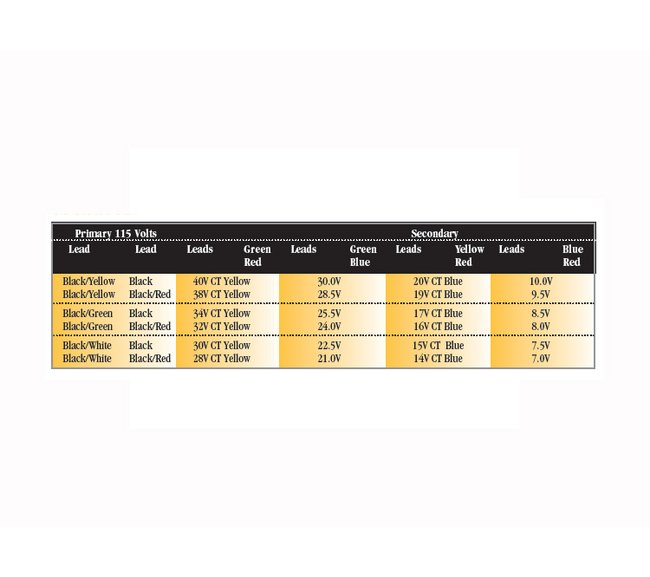

Tapped primary to produce lower voltages
Specifications Case Type
A
Specifications Connections
Leads
Specifications Depth D
3 in
Specifications Height H
3 3/16 in
Specifications Mounting Depth
2 1/16 in
Specifications Mounting Hole Size
3/8 x 13/64 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current Dc
1.0 A
Specifications Secondary Voltage Ac
10-20 CT-40 CT | 14 to 40 (FWCT) | 7 to 30 (FWB)
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.3 lb
Specifications Width W
2 21/32 in
