115V Chassis Mount Power Transformer for Full Wave Circuits
115V Chassis Mount Power Transformer for Full Wave Circuits
SKU:POW-7017e6
Enhance circuit performance with our 115V Chassis Mount Power Transformer, optimized for full wave setups. Versatile & reliable!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
115V Chassis Mount Power Transformer for Full Wave Circuits
$29.99
Quantity: 1
Claim Your Seller Account
115V Chassis Mount Power Transformer for Full Wave Circuits
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

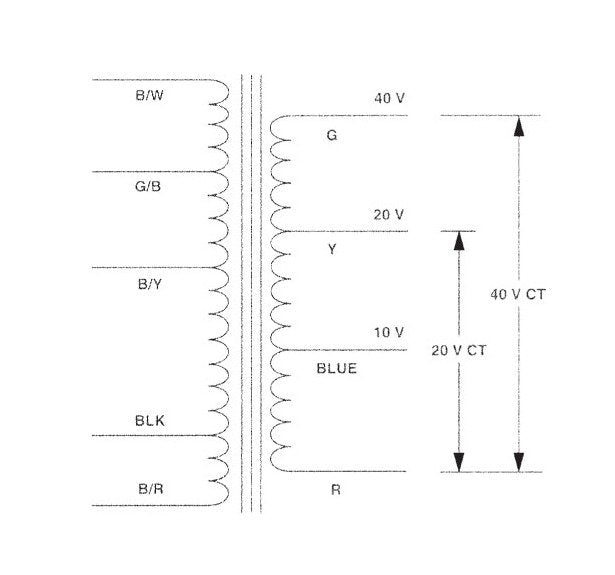

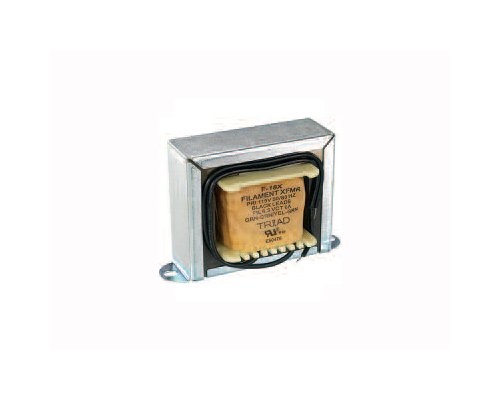

The 115V Chassis Mount Power Transformer is a versatile solution designed for optimal performance in full wave center tap or bridge circuits with silicon or selenium rectifiers. Featuring primary voltage of 115V and secondary voltages of 10-20 CT-40 CT, 14 to 40 (FWCT), and 7 to 30 (FWB), this transformer offers flexibility in output voltages. The Series F-90 transformers, with a center tap configuration, are ideal for powering transistors using silicon diode rectifiers. With reliable construction and a compact design, this transformer is an excellent choice for various applications requiring stable DC voltages.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Tapped primary to produce lower voltages
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
1 3/8 in
Specifications Height H
1 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current Dc
0.035 A
Specifications Secondary Voltage Ac

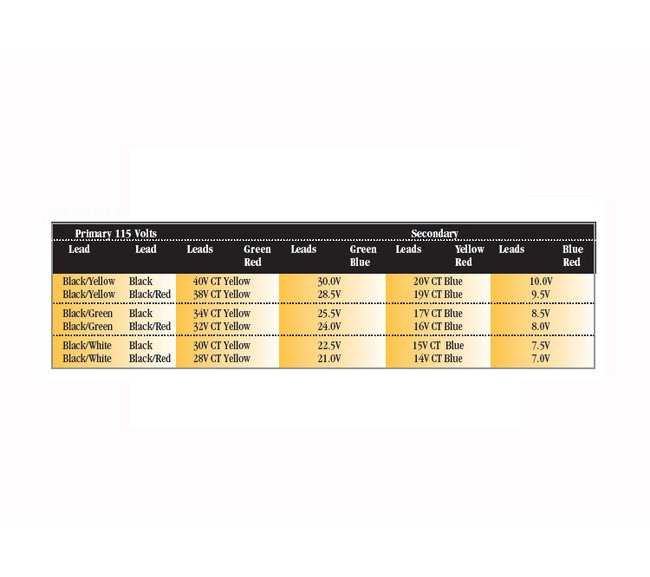

10-20 CT-40 CT | 14 to 40 (FWCT) | 7 to 30 (FWB)
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.50 lb
Specifications Width W
2 3/8 in
