115V Chassis Mount Power Transformer - Universal Series F-90
115V Chassis Mount Power Transformer - Universal Series F-90
SKU:POW-157e57
Enhance circuit performance with the 115V Chassis Mount Power Transformer from the Universal Series F-90 line. Optimal for various transistor applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
115V Chassis Mount Power Transformer - Universal Series F-90
$59.99
Quantity: 1
Claim Your Seller Account
115V Chassis Mount Power Transformer - Universal Series F-90
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

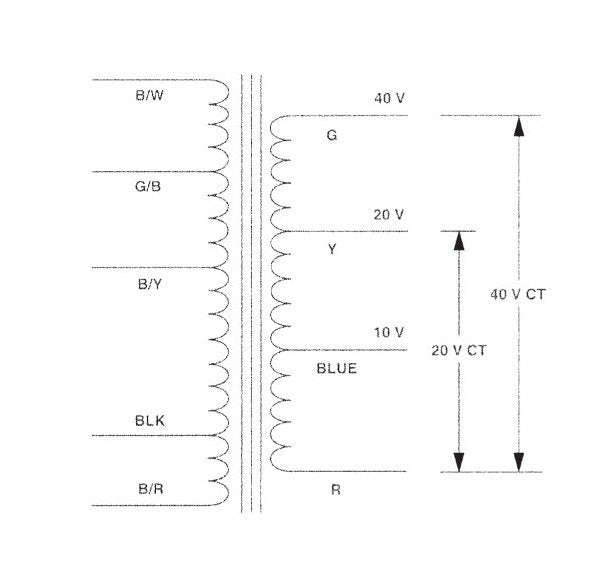

The 115V Chassis Mount Power Transformer from the Universal Series F-90 line is expertly designed for optimal performance in full wave center tap or bridge type circuits with silicon or selenium rectifiers. It features primary voltage selection via taps and versatile secondary voltages ranging from 10-20 CT-40 CT, 14 to 40 (FWCT), to 7 to 30 (FWB). This transformer, suitable for use with silicon diode rectifiers, ensures reliable DC voltage supply for various transistor applications, supporting full wave center tap or bridge rectifiers as well as voltage doubler circuits at half the rated current.
Product Specifications
Note Note
Tapped primary to produce lower voltages
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
2 1/4 in
Specifications Height H
2 19/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current Dc
0.75 A

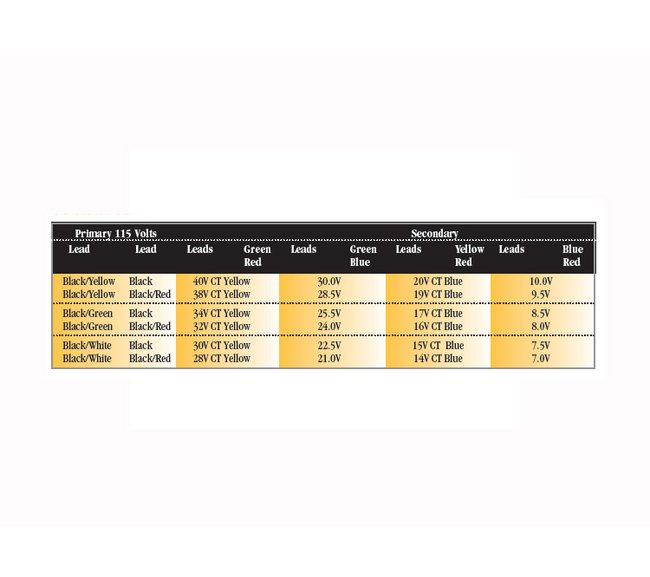

Specifications Secondary Voltage Ac
10-20 CT-40 CT | 14 to 40 (FWCT) | 7 to 30 (FWB)
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.40 lb
Specifications Width W
4 in
