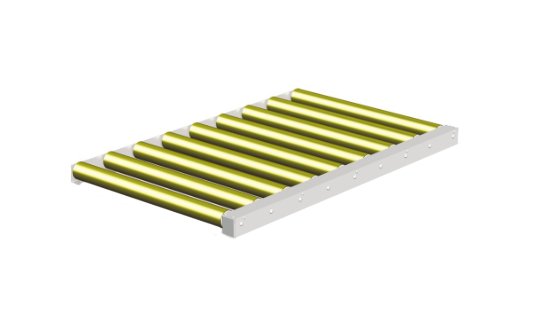

1170mm Width Coupled Sections Driven Pallet Conveyor

Name: 1170mm Width Coupled Sections Driven Pallet Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-97c0e2
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-97c0e2

Efficiently handle pallets with the 1170mm Width Coupled Sections Driven Pallet Conveyor. Designed for durability and high performance.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1170mm Width Coupled Sections Driven Pallet Conveyor by SOCO is a robust solution designed for efficient pallet handling. Featuring electro galvanized steel construction, 80mm conveying rollers, and a durable chain drive system with chain cover for added safety. With a payload capacity of up to 1,500kg per pallet, this conveyor ensures dependable performance for various applications. The 178mm roller pitch and precise engineering meet the highest standards for industrial conveyor systems, making it ideal for packaging facilities and logistics operations.

Product Specifications

Dimensions Length

2000 mm

Dimensions Width

1170 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
