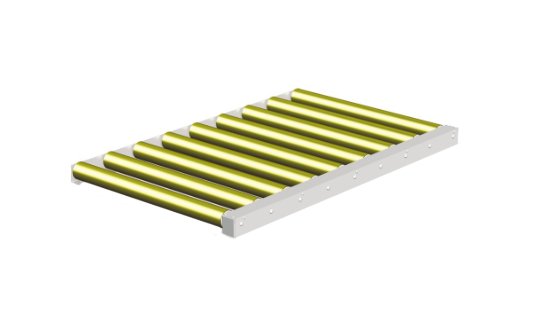

1170mm Width Pallet Conveyor

Name: 1170mm Width Pallet Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-42235a
Price: 2599.99 USD
Availability: OutOfStock

SKU:PAC-42235a

Efficient and durable pallet conveyor for seamless material handling. Supports up to 1,500kg per pallet.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SOCO 1170mm Width Pallet Conveyor is a robust solution designed for efficient material handling. Constructed with electro galvanized steel components, including rollers and frames, it ensures durability and smooth operation. With a conveying roller diameter of 80mm and a chain drive system integrated with hardened steel sprockets, this conveyor can handle up to 1,500kg per pallet with ease. The 89mm roller pitch and 90mm total height make it suitable for various pallet dimensions, offering versatility and reliability for your packaging needs.

Product Specifications

Dimensions Length

500 mm

Dimensions Width

1170 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
