1170mm x 1000mm Driven Pallet Roller Conveyor with Gear Motor

Name: 1170mm x 1000mm Driven Pallet Roller Conveyor with Gear Motor
Brand: TPC Packaging Solutions
SKU: PAC-0b94c2
Price: 2299.99 USD
Availability: OutOfStock

SKU:PAC-0b94c2

Efficient and durable 1170mm x 1000mm Driven Pallet Roller Conveyor for up to 1500kg loads, featuring electro galvanized steel construction and a 0.37 kW gear motor.

$2,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

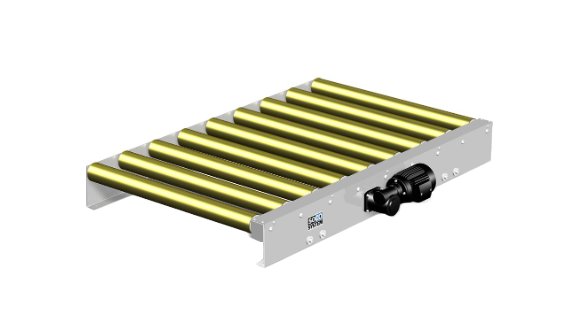

The 1170mm x 1000mm Driven Pallet Roller Conveyor with Side-Mounted Gear Motor by SOCO is designed for efficiency and durability. Featuring electro galvanized steel construction, 80mm diameter conveying rollers, and a 0.37 kW gear motor, this conveyor can handle up to 1500kg loads per pallet and motor unit. With a smooth design, silent operation, and easy relocation capabilities, this conveyor ensures seamless pallet handling in packaging facilities. It meets stringent industry standards for quality and performance.

Product Specifications

Accessories Accessories

Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting

Dimensions Length

1000 mm

Dimensions Width

1170 mm

Features Features

All sections are supplied with coupling fittings.Silent - minimal friction.Smooth design - no sharp edges.Easy to relocate and extend.

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

190 mm
