1170mm x 1500mm Left Side Driven 2-Part Pallet Roller Conveyor

Name: 1170mm x 1500mm Left Side Driven 2-Part Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-e664f8
Price: 2499.99 USD
Availability: OutOfStock

SKU:PAC-e664f8

Reliable and durable 2-Part Pallet Roller Conveyor for efficient pallet handling in packaging setups.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

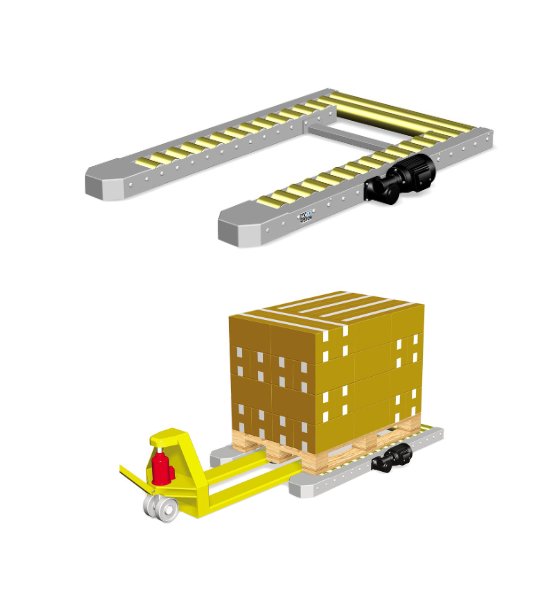

The 1170mm x 1500mm Left Side Driven 2-Part Pallet Roller Conveyor by SOCO is a robust solution for pallet handling, featuring electro galvanized steel construction for durability. With a payload capacity of up to 1,500 kg per pallet, this conveyor ensures efficient movement and positioning of pallets for collection. The gear motor and chain drive system, along with 80mm conveying rollers suspended on M10 axles, provide reliable operation at a speed of 11.4 m/min. Ideal for packaging applications, this conveyor meets stringent industry standards for quality and performance.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1170 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Motor Mounted

Left Side

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
