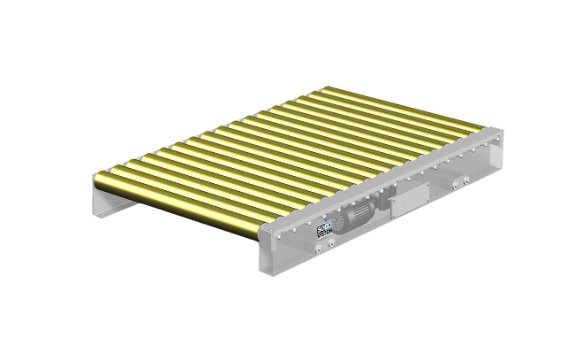

1170mm x 1500mm Pallet Roller Conveyor with Gear Motor

Name: 1170mm x 1500mm Pallet Roller Conveyor with Gear Motor
Brand: TPC Packaging Solutions
SKU: PAC-96e1ae
Price: 2899.99 USD
Availability: OutOfStock

SKU:PAC-96e1ae

Efficient and durable 1170mm x 1500mm Pallet Roller Conveyor with Gear Motor for easy pallet handling.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1170mm x 1500mm Pallet Roller Conveyor, powered by a 0.37 kW Gear Motor, is designed for efficient and safe pallet handling. Built with electro galvanized steel components, including rollers, chains, and axles, it can handle loads up to 1,500 kg per pallet. With a chain-driven mechanism, 80mm conveying rollers, and a roller pitch of 89mm, this conveyor ensures smooth and reliable operation. The frame structure, featuring cold-bend angle profiles bolted to C-profile cross bars, provides robust support. Suitable for various applications, this conveyor meets stringent quality standards and offers exceptional durability in industrial settings.

Product Specifications

Dimensions Length

1500 mm

Dimensions Width

1170 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Chain Cover

Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.

Specifications Chain Drive

Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Gear Motor

0.37 kW

Specifications Minimum Height

255 mm

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

89 mm

Specifications Speed

11.4 m/min

Specifications Standard Total Height From Floor To Top Of Roller

190 mm
