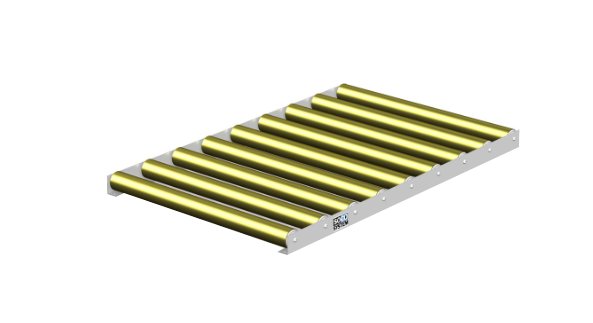

1170mm x 2000mm Non-Driven Pallet Roller Conveyor

Name: 1170mm x 2000mm Non-Driven Pallet Roller Conveyor
Brand: TPC Packaging Solutions
SKU: PAC-8807f0
Price: 2499.99 USD
Availability: OutOfStock

SKU:PAC-8807f0

Efficient, durable 1170mm x 2000mm pallet roller conveyor by SOCO. Max load 1500kg/pallet. Electro galvanized steel. Cold-bend angle profiles for stability.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1170mm x 2000mm Non-Driven Pallet Roller Conveyor by SOCO is designed with precision and durability in mind. Featuring electro galvanized steel construction, 80mm rollers suspended on M10 axles, and a maximum payload of 1500 kg per pallet, this conveyor ensures efficient and secure pallet handling. The cold-bend angle profiles bolted to C-profile cross bars provide stability and support, meeting the highest standards in packaging equipment. Suitable for a variety of applications, this conveyor guarantees smooth and reliable operation.

Product Specifications

Dimensions Length

2000 mm

Dimensions Width

1170 mm

Note Note

Subject to alteration.

Specifications Axle Diameter

17 mm

Specifications Bearings

6203 - 2rs

Specifications Conveying Rollers Diameter

80 mm

Specifications Frames

Cold-bend angle profiles bolted to C-profile cross bars with supports.

Specifications Pallet Handling Surface Treatment

Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.

Specifications Payload

For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.

Specifications Roller Conveyor

Electro galvanized steel tubes

Specifications Roller Fittings

Rollers are suspended between side frames by means of M10 axle.

Specifications Roller Pitch

178 mm

Specifications Standard Total Height From Floor To Top Of Roller

90 mm
