11mm C-Mount Non-Distortion Telecentric Lens
11mm C-Mount Non-Distortion Telecentric Lens
SKU:STO-c27a41
Achieve precision imaging with the 11mm C-Mount Telecentric Lens. Ideal for industrial applications with zero distortion and high resolution.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
11mm C-Mount Non-Distortion Telecentric Lens
$599.99
Quantity: 1
Claim Your Seller Account
11mm C-Mount Non-Distortion Telecentric Lens
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

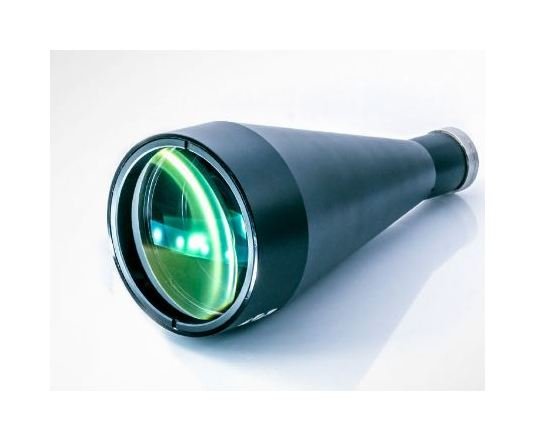

The SO-TEL-H62C-0850 11mm C-Mount Non-Distortion Telecentric Lens offers exceptional precision with a working distance of 1405mm and a magnification of 0.1. It provides a large field of view of 110mm, ensuring accurate imaging for industrial applications. With a high resolution of 46.2µm and low distortion of 0.01%, this lens delivers sharp and distortion-free images across various sensor sizes. Designed to meet stringent institutional procurement standards, this lens is ideal for government and commercial use.
Product Specifications
Specifications Depth Of Field
70.6 mm
Specifications Distortion Nominal
0.01 %
Specifications Fov
110 mm
Specifications Fov 118 Inch Sensor 72 X 53mm
72X53
Specifications Fov 13 Inch Sensor 48 X36mm
48X36
Specifications Fov 23 Inch Sensor 845 X 707mm
84.5X70.7
Specifications F Number
F7
Specifications Image Sf Lpmm Mtf 03
135
Specifications Image Size
11 mm
Specifications Magnification
0.1
Specifications Mount
C
Specifications Object Image Distance
1592.2 mm
Specifications Resolution
46.2 µm
Specifications Working Distance
1405 mm
