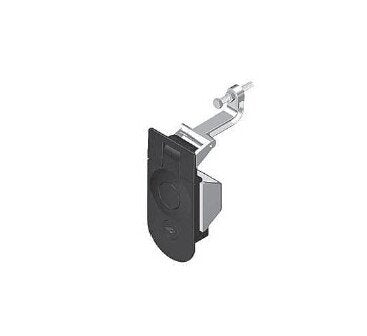

11mm Non-Locking Handle Compression Latch with B Mounting Bracket

Name: 11mm Non-Locking Handle Compression Latch with B Mounting Bracket
Brand: All Electronics Hardware
SKU: IND-60e24b
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-60e24b

Secure doors & flaps with 11mm panel thickness non-locking compression latch with B bracket.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance security with this high-quality compression latch designed for doors and flaps. Featuring a non-locking mechanism suitable for various applications, it offers a secure grip with a minimum panel thickness of 11mm. Crafted from durable materials, including mild steel and die-cast zinc, it ensures lasting performance. The black powder-coated finish adds a sleek touch while the adjustable grip range provides versatility. Ideal for industrial use, this latch guarantees easy operation and reliability.

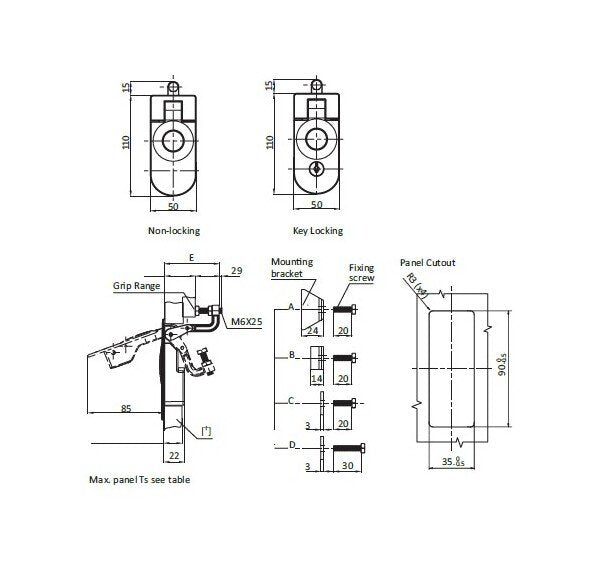

Product Specifications

Specifications Cylinder Style

Non-Locking

Specifications Dimension E

44 mm

Specifications Material

Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc

Specifications Maximum Grip Range

29 mm

Specifications Maximum Panel Thickness

21 mm

Specifications Minimum Grip Range

14 mm

Specifications Minimum Panel Thickness

11 mm

Specifications Mounting Bracket

Specifications Surface Finish

Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated
