12-18 kVDC High Voltage Right Angle Connector - Ruggedized PeeWee Series
12-18 kVDC High Voltage Right Angle Connector - Ruggedized PeeWee Series
SKU:HIG-371ba6
High-quality 12-18 kVDC Ruggedized PeeWee Series right angle connector for high-voltage applications. Ideal for industrial, medical, and aerospace sectors.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12-18 kVDC High Voltage Right Angle Connector - Ruggedized PeeWee Series
$34.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC High Voltage Right Angle Connector - Ruggedized PeeWee Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series features a high-quality plug with a right-angle, double-ended design, coated with silicone over FEP wire and a Nomex jacket. With a current rating of 5 Amp and test voltage of 18 kVDC, it operates efficiently within -55 to 125 °C. This connector is ideal for high-voltage applications in industries such as High-End Industrial Manufacturing, Medical Equipment, and Aerospace, meeting the stringent standards required by government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

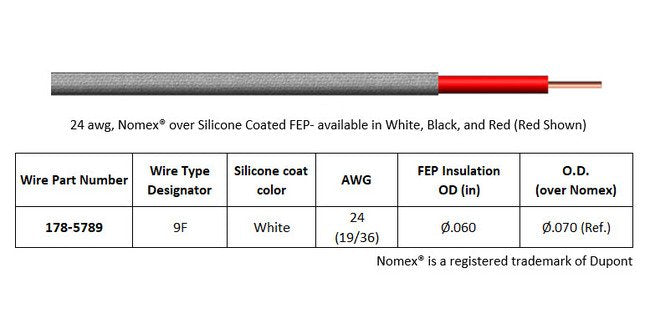

Cable Wire Properties Wire Diameter
nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Double-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
