12-18 kVDC Ruggedized PeeWee High Voltage Connector
12-18 kVDC Ruggedized PeeWee High Voltage Connector
SKU:HIG-74421e
High-performance 12-18 kVDC Ruggedized PeeWee Series connector for extreme high voltage applications. Si-coated FEP wire, double-ended assembly, and Nomex jacket ensure reliability in demanding conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee High Voltage Connector
$129.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee High Voltage Connector
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

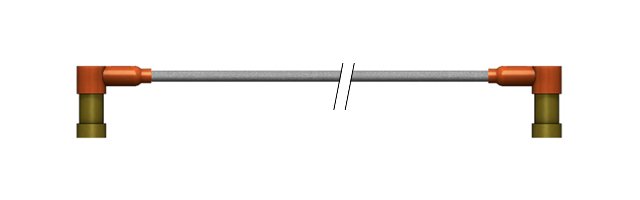

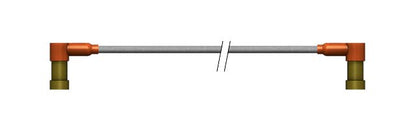

The 12-18 kVDC Ruggedized PeeWee Series is a high-performance connector designed for demanding applications in high voltage environments. Featuring a right angle, double-ended assembly with Si-coated FEP wire and Nomex jacket, this connector ensures reliable power transmission in extreme conditions. With a current rating of 5 Amp and a test voltage of 18 kVDC, it meets the stringent requirements of high voltage power supplies, semiconductor processing equipment, radar systems, and more. Built to withstand temperatures from -55 to 125°C, this connector is ideal for aerospace, defense, and industrial sectors requiring durable and efficient electrical connections.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

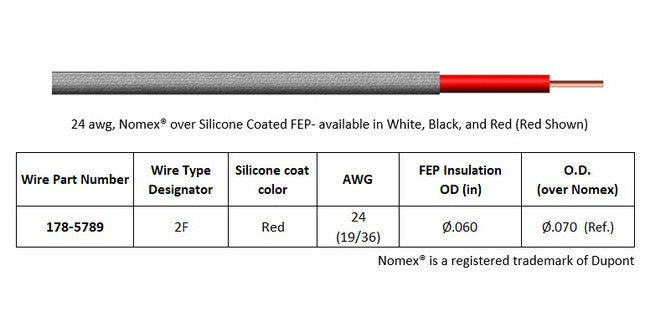

nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, R/A, Double-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
