12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
SKU:HIG-dcea12
High voltage single pin connector for rugged applications. Straight plug with FEP wire insulation. Rated for 5 Amps, -55 to 125 ºC. Ideal for power supplies, radar systems, medical equipment.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$39.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series Single Pin Connector is designed for high voltage applications requiring durability and reliability. Featuring a straight, single-ended plug with .070 Si Coated FEP wire in white insulation, this connector is rated for a current of 5 Amps and operates within a wide temperature range of -55 to 125 ºC. With a test voltage of 19 kVDC and compatibility with various push-pull standard PeeWee and PWR connectors, this connector is ideal for High Voltage Power Supplies, Radar Systems, Medical Equipment, and more. Meeting standard specifications and suitable for space and weight-sensitive applications, this connector ensures secure and efficient connections in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

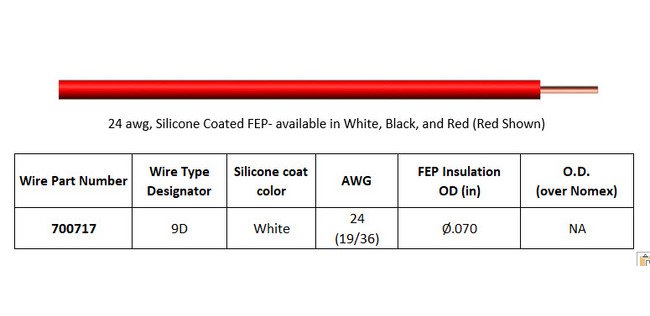

Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP, white
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
19 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
