12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
SKU:HIG-d9136c
Reliable 12-18 kVDC Ruggedized PeeWee single pin connector for high voltage applications. Red wire insulation, high current rating, wide operating temperature range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$49.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series high voltage single pin connector is a reliable solution for demanding applications. Featuring a plug straight, single-ended design with .070 Si Coated FEP wire in red, this connector offers a ground level rating from sea level to 10,000 ft, and an altitude reduced pressure rating up to 70,000 ft. With a current rating of 5.9 Amp at 80°C free air (at 18 kVDC) and 4.5 Amp at 23°C free air (at 12 kVD), this connector operates at temperatures ranging from -55 to 125°C. It mates seamlessly with all standard PeeWee and PWR connectors and cable assemblies, making it a versatile choice for high voltage power supplies, radar systems, medical equipment, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation

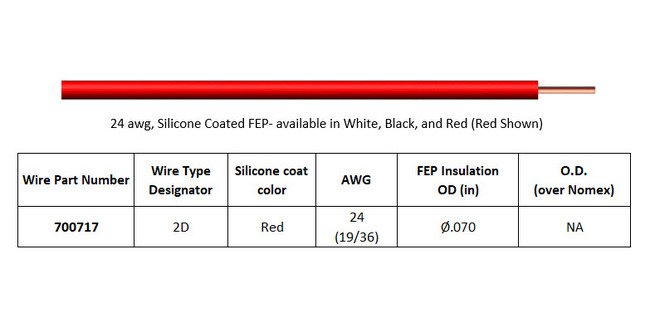

Silicone coated FEP, red
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5.9 Amp @ 80 C free air (at 18 KVDC) and 4.5 Amp @ 23 C free air (at 12 KVD)
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
19 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
