12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
SKU:HIG-1ba62d
Reliable 12-18 kVDC Ruggedized PeeWee Series connector for high voltage applications. Sturdy construction for diverse environments.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$59.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee High Voltage Single Pin Connector
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series offers a reliable and high-performance solution for high voltage applications. This single-ended receptacle features a .070 Si-Coated FEP wire, with a sturdy ThermoPlastic insulator material and silicone rubber encapsulation. With a ground level rating from Sea Level to 10,000 ft and an operating temperature range of -55 to 125°C, this connector is suitable for diverse environments. Tested at 18 kVDC, it ensures secure connections for various critical applications in aerospace, military, industrial, and scientific sectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

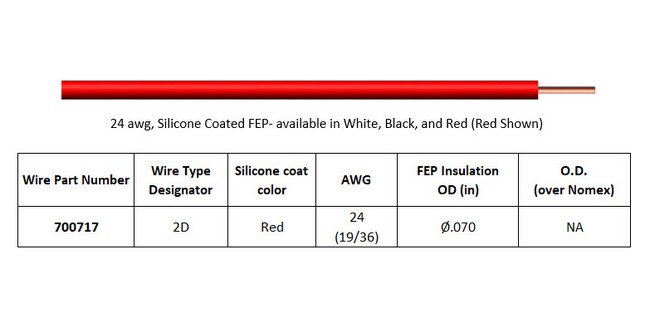

Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
