12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector
12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector
SKU:HIG-01bd2d
Reliable 12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector for demanding environments. Current rating: 5 Amp.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector
$29.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

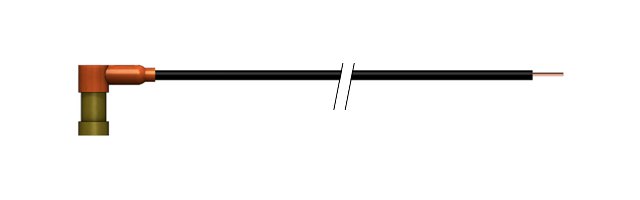

The 12-18 kVDC Ruggedized PeeWee Series High Voltage Single Pin Connector is designed for demanding environments with its receptacle, right-angle assembly. It features a ground level rating from sea level to 10,000 ft and an altitude reduced pressure rating up to 70,000 ft. With a current rating of 5 Amp and operating temperature ranging from -55 to 125 °C, this connector excels in High Voltage Power Supplies, Radar Systems, Night Vision Goggles, and other space-sensitive applications. Compliant with industry standards, including 18 kVDC test voltage and compatibility with various PeeWee and PWR connectors.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

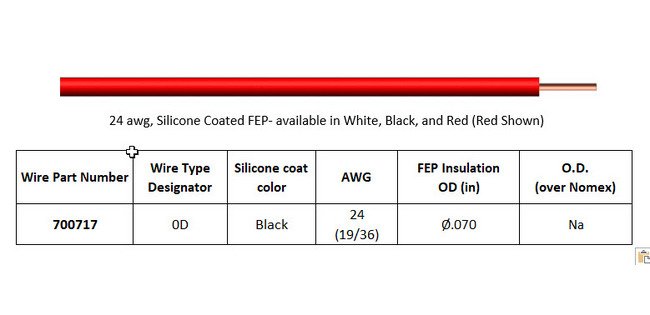

Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, R/A, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
