12-18 kVDC Ruggedized PeeWee Single Pin Connector
12-18 kVDC Ruggedized PeeWee Single Pin Connector
SKU:HIG-0876e3
Reliable 12-18 kVDC Single Pin Connector for high-voltage applications. Durable, high-performance design meeting industry standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12-18 kVDC Ruggedized PeeWee Single Pin Connector
$34.99
Quantity: 1
Claim Your Seller Account
12-18 kVDC Ruggedized PeeWee Single Pin Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

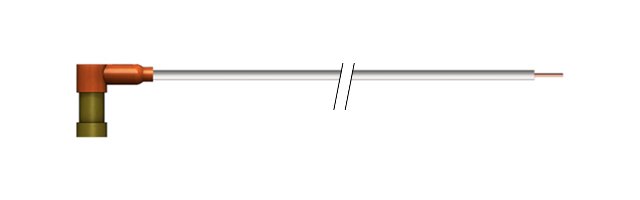

The 12-18 kVDC Ruggedized PeeWee Series Single Pin Connector is a high-voltage connector suitable for demanding environments. With a current rating of 5 Amp and a test voltage of 18 kVDC, it offers reliable performance from sea level up to 10,000 ft altitude. The connector is designed for various applications, including High Voltage Power Supplies, Radar Systems, and Medical Instrumentation. Its push-pull coupling style ensures secure connections, while the silicone rubber encapsulation and etched FEP wire insulation guarantee durability and safety. Mating compatibility with standard PeeWee connectors and adherence to industry standards make it a versatile and compliant choice for institutional and commercial buyers.
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter
Ã.060 in
Cable Wire Properties Wire Insulation

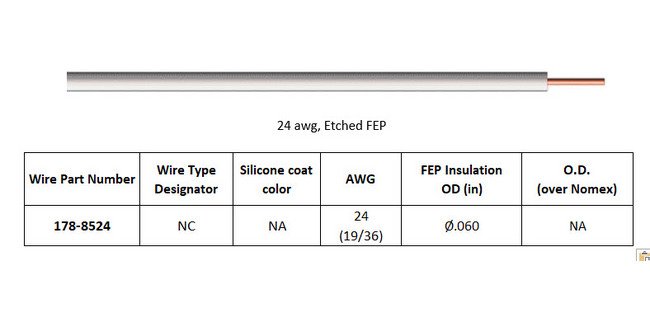

Etched FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, R/A, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
