#12-24 EIA Rail Cage Nut - All Electronics Hardware
#12-24 EIA Rail Cage Nut - All Electronics Hardware
SKU:IND-838169
Premium #12-24 EIA Rail Cage Nut for tool-less installation on 2.0-3.0mm EIA rails. Grounding tabs, floating nut design, and durable materials for industrial use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
#12-24 EIA Rail Cage Nut - All Electronics Hardware
$12.99
Quantity: 1
Claim Your Seller Account
#12-24 EIA Rail Cage Nut - All Electronics Hardware
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

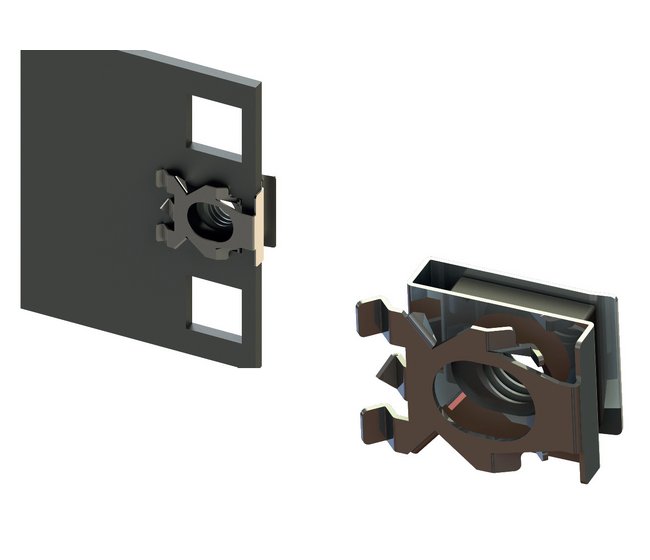

The #12-24 Thread Size EIA Rail Cage Nut from All Electronics Hardware is a premium solution designed for tool-less installation on EIA rails with 2.0 mm to 3.0 mm thickness. Made of high-quality materials including spring stainless steel and die-cast zinc, this cage nut ensures durability and reliability. Featuring grounding tabs and a floating nut design, it offers secure fastening and excellent conductivity. With a passivated cage and clear zinc plated nut, this product meets rigorous standards for industrial applications.

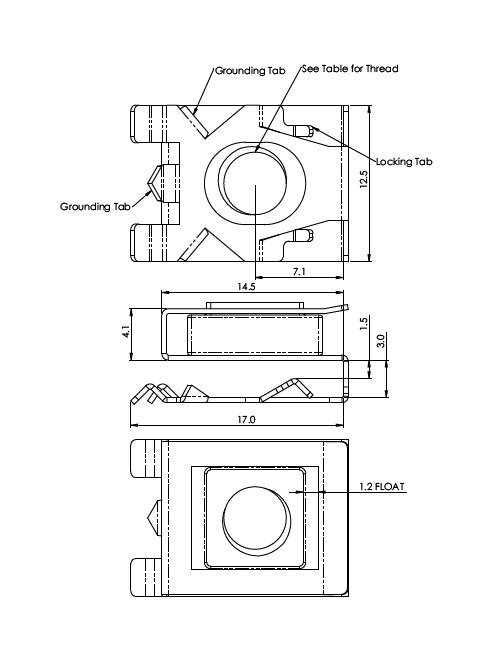

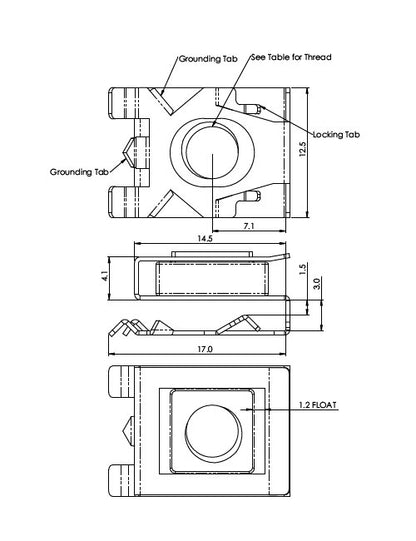

Product Specifications
Features
Tool-Less InstallationFloating NutGrounding Tabs Built InFor EIA Rail Thickness 2.0 mm-3.0 mm
Specifications Finish
Cage - Passivated | Nut - Clear Zinc Plated
Specifications Material
Cage - Spring Stainless Steel. 0.040 mm Thick 510 HRB Hardness | Nut - Die Cast Zinc
Specifications Thread Size
#12-24
