12.30mm UM12 Grade Carbide Hole Rod

Name: 12.30mm UM12 Grade Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-5fa765
Price: 69.99 USD
Availability: OutOfStock

SKU:SOL-5fa765

High-grade 12.30mm carbide rod for precision machining. UM12 Carbide Grade for durability and accuracy.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

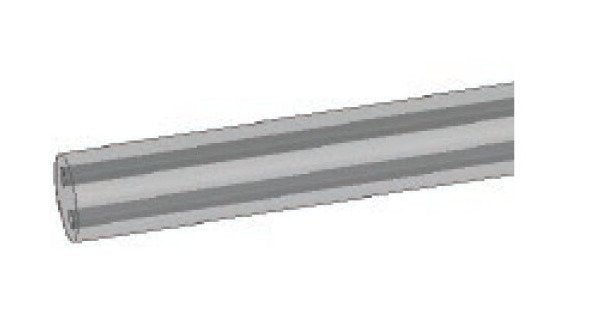

The 12.30mm UM12 Grade Carbide Hole Rod is a top-quality unground standard rod designed for precision machining applications. With a diameter tolerance of +0.3mm and a length of 330mm, this rod provides exceptional machining accuracy. It features a 1.80mm coolant hole and meets stringent UM12 Carbide Grade standards, ensuring durability and superior performance. Ideal for industrial applications requiring precise tooling solutions.

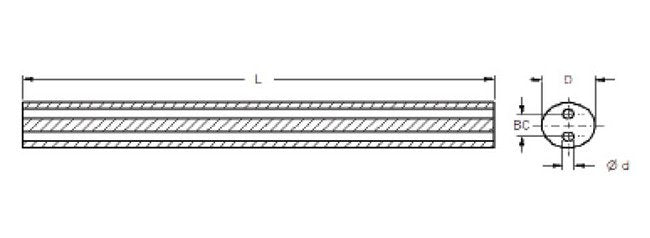

Product Specifications

Classifications Between Centers Bc Diameter

6.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

12.30 mm

Classifications Diameter Tolerance

+0.3 mm | 0.5 mm

Classifications Finish

Unground

Classifications Hole D

1.80 mm

Classifications Hole D Tolerance

0.15 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.594024219 Kilogram

12.30mm UM12 Grade Carbide Hole Rod
