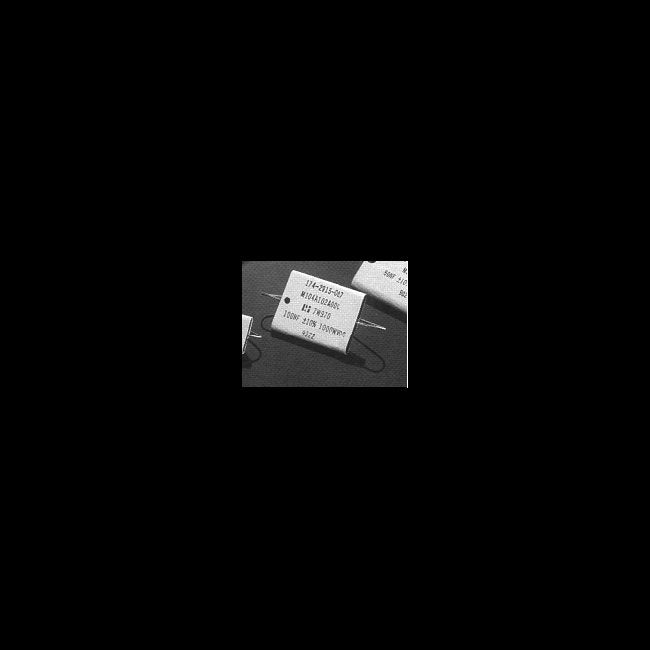

12.5 kVDC Rated High Voltage Mica Capacitors
12.5 kVDC Rated High Voltage Mica Capacitors
SKU:HIG-a253f1
Highly reliable 12.5 kVDC Rated Mica Capacitors for high energy applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12.5 kVDC Rated High Voltage Mica Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
12.5 kVDC Rated High Voltage Mica Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12.5 kVDC Rated High Voltage Mica Capacitors offer reliable performance with a capacitance of 1 nF and a capacitance tolerance of ±10%. Featuring a dissipation factor of 0.005 Max. at 25°C, 1 kHZ, and a dielectric withstanding voltage of 12.5 kV rated, these standard parts ensure efficient energy storage and transfer. With insulation resistance values meeting industry standards, these capacitors are ideal for high energy devices and critical applications.
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
1 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
12.5 kV rated | 15 kV burn-in for 2 hours at 100°C | 17.5 kV proof for 5 seconds
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

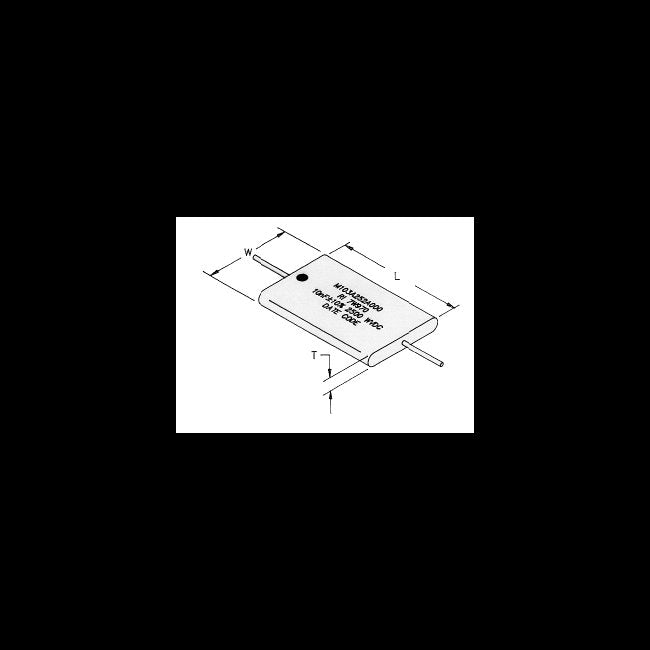

Specifications Length
1.94 in | 49.3 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.20 in | 5.1 mm
Specifications Voltage Rating
12.5 kVDC
Specifications Width
1.08 in | 27.4 mm
