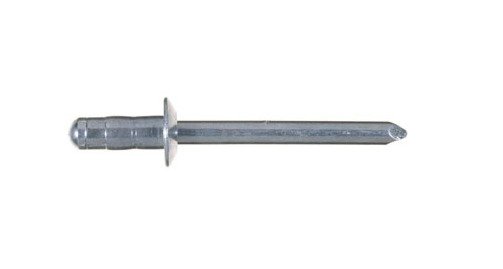

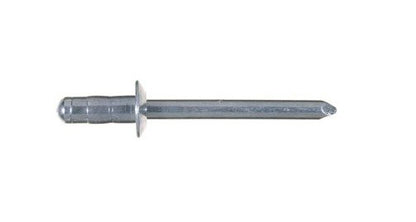

12.7mm U-Fix All Steel Dome Head Rivet
12.7mm U-Fix All Steel Dome Head Rivet
SKU:UFI-34e605
Highly versatile 12.7mm dome head rivet for secure fastening in interior and automotive applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12.7mm U-Fix All Steel Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
12.7mm U-Fix All Steel Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12.7mm U-Fix All Steel Dome Head Rivet is a versatile and durable fastener designed for a variety of interior and automotive applications. With a low carbon steel body and zinc plated chromium finish, it offers superior strength and corrosion resistance. This rivet features a multi-grip function with a nominal shear force of 465 kgf and a tensile force of 340 kgf, ensuring secure and reliable fastening. Its precise dimensions and high-quality construction make it ideal for securing rails, components in vehicles, and more.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.0 mm | 0.192 to 0.196 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
6.3 mm | 0.248 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
465 kgf | 1023 lbf
Nominal Forces Nominal Tensile Force
340 kgf | 748 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
