12" Aluminum T-Handle Test Plug
12" Aluminum T-Handle Test Plug
SKU:HIG-b03630
Durable 12" Aluminum T-Handle Test Plug for sewer air pressure tests. Chemical-resistant neoprene seal for secure fit. Ideal for long-term applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12" Aluminum T-Handle Test Plug
$89.99
Quantity: 1
Claim Your Seller Account
12" Aluminum T-Handle Test Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12" Aluminum T-Handle Test Plug from the 143-7 Mechanical T-Handle Aluminum Test Plugs series is a durable solution for conducting sewer air pressure tests. With a heavy-duty aluminum body, chemical-resistant neoprene seal, and a nominal diameter of 12 inches, this plug ensures a secure fit for long-term applications. It can withstand maximum back pressures of 5 psi for air and 40 ft for liquid head pressure, making it ideal for both consumer and institutional buyers looking for reliability and performance.

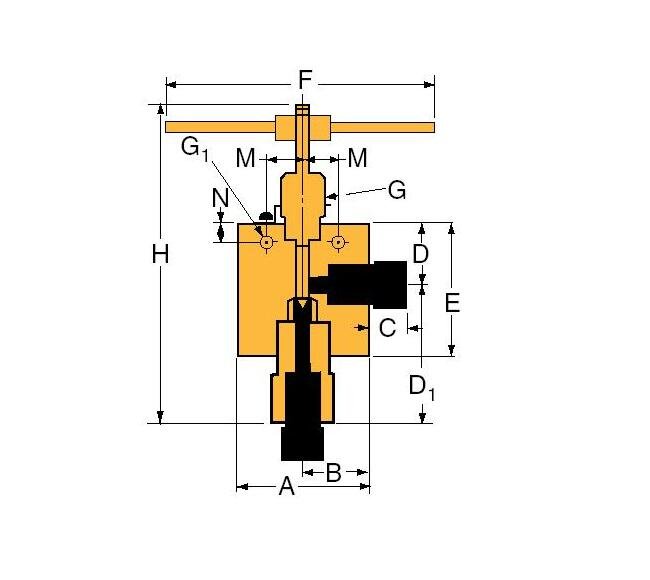

Product Specifications
Specifications A Width
4.88 in | 123.96 mm
Specifications Block Thickness
2.25 in | 57.15 mm
Specifications B Length
2.44 in | 61.96 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
4.31 in | 109.47 mm
Specifications D Height
2.81 in | 71.37 mm
Specifications E Height
5.24 in | 133.35 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
10.56 in | 268.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.6
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle/Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
