12 Inch Fabricated Tee Type Strainer
12 Inch Fabricated Tee Type Strainer
SKU:TEM-a9986c
Custom 12 Inch Fabricated Tee Strainer for pipeline particle removal, ensuring pump and valve protection. Constructed from carbon or stainless steel with customizable options.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
12 Inch Fabricated Tee Type Strainer
$699.99
Quantity: 1
Claim Your Seller Account
12 Inch Fabricated Tee Type Strainer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

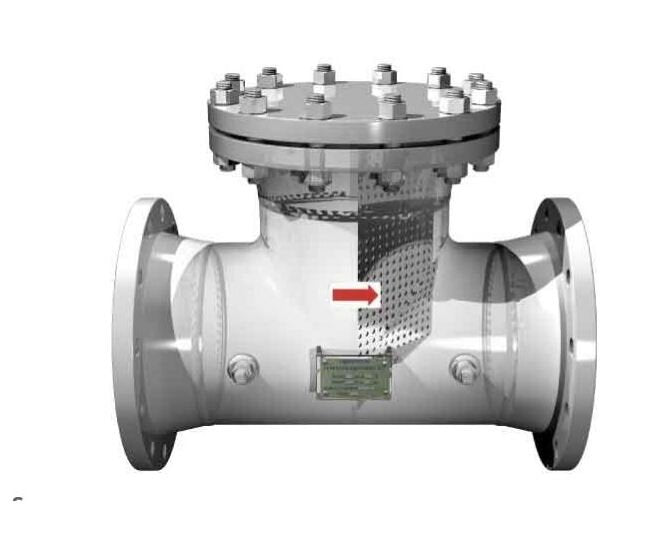

The 12 Inch Fabricated Tee Type Strainer by Sure Flow is a custom-designed solution for efficient removal of pipeline particles, ensuring optimal protection for pumps and valves. Constructed from high-quality carbon or stainless steel, this strainer is available in various configurations to meet specific requirements. With customizable options like end connections and materials, it offers exceptional durability and reliability for industrial applications.
Product Specifications
Additional Information Additional Information

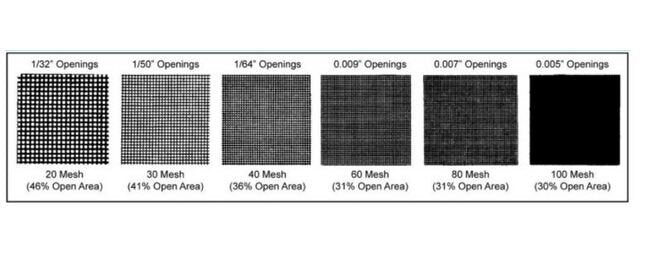

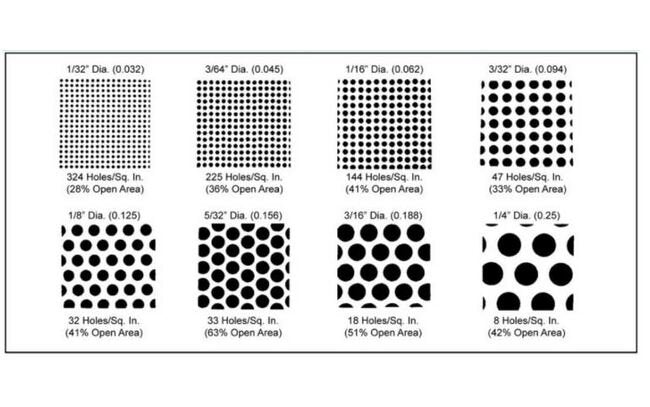

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

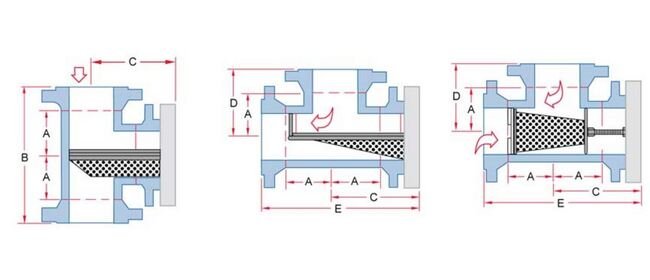

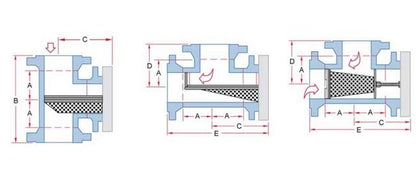

Dimensions Dimension A
10 in
Dimensions Dimension B For American Society Of Mechanical Engine
42 3/4 in
Dimensions Dimension C For American Society Of Mechanical Engine
26 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
21 3/8 in
Dimensions Dimension E For American Society Of Mechanical Engine
48 in
Dimensions Pipe Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
