12 Inch Ionizing Bar for Static Elimination
12 Inch Ionizing Bar for Static Elimination
SKU:STA-55fd13
Efficiently eliminate static electricity with the 12-inch Ionizing Bar by EXAIR. Rugged, compact, and compliant with safety standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
12 Inch Ionizing Bar for Static Elimination
$189.99
Quantity: 1
Claim Your Seller Account
12 Inch Ionizing Bar for Static Elimination
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

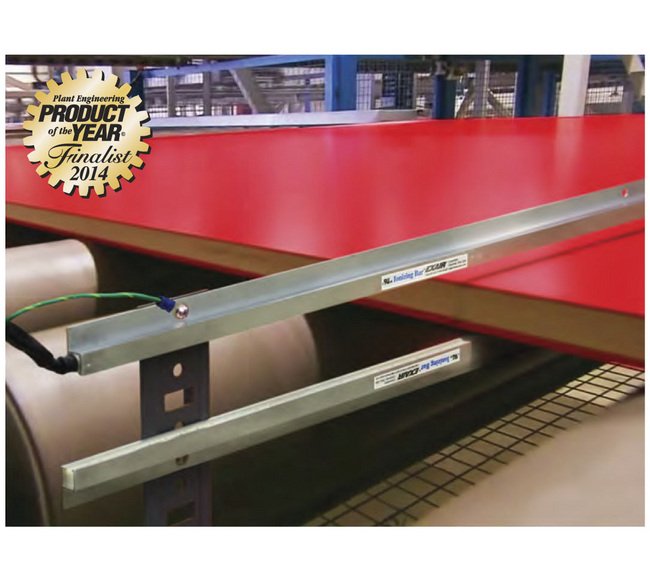

The 12-inch Ionizing Bar by EXAIR efficiently eliminates static electricity on paper, film, and plastics to prevent dust attraction, product appearance damage, tearing, and jamming. This electrically powered bar features a high concentration of positive and negative ions for rapid static decay, neutralizing surfaces within 2 inches. With aluminum channel material, stainless steel emitters, and UL-rated plastic parts, this Ionizing Bar is compact, rugged, and effective in industrial environments. Easy to install with low maintenance requirements, it is shockless and conforms to UL, CE, RoHS, and safety standards for reliable static elimination.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
12 in | 305 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
