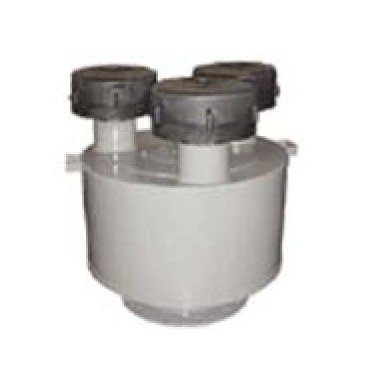

12 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
12 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
SKU:SPI-d22f96
Enhance air quality in high dust environments with the 12 Inch Spinmeister Air Filter
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
12 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
$899.99
Quantity: 1
Claim Your Seller Account
12 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element offers exceptional filtration for high dust environments, prolonging filter element life. With 85% efficiency at 15 microns or larger, the centrifugal flow and pleated element ensure superior air quality. Constructed with a durable composite material, this filter is versatile for applications in various industries like blowers, engines, and more. Its heavy-duty carbon steel housing and low pressure drop bracket design provide durability and reliable performance, making it a top choice for demanding environments.
Product Specifications
Dimensions Dimension A
37-1/2 in
Dimensions Dimension B
6 in
Dimensions Dimension C
28-1/2 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
163 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
12 in
Specifications Rated Flow
2700 scfm
Specifications Type
D
