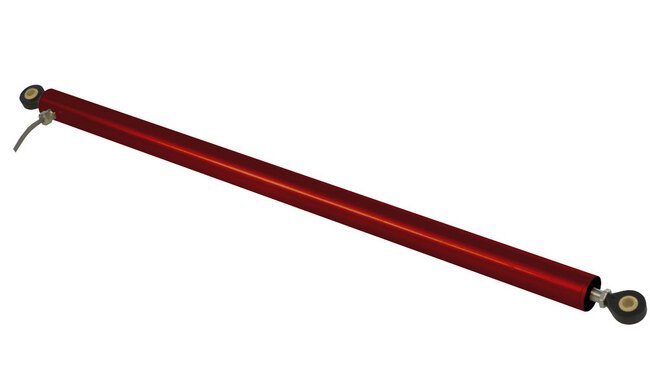

12-Inch Stroke Linear Potentiometer Sensor - 0-10V Output DC Voltage
12-Inch Stroke Linear Potentiometer Sensor - 0-10V Output DC Voltage
SKU:LIN-a51eeb
Enhance your linear motion systems with precision and reliability using this 12-Inch Stroke Linear Potentiometer Sensor. CE Approved & High Accuracy!
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
12-Inch Stroke Linear Potentiometer Sensor - 0-10V Output DC Voltage
$129.99
Quantity: 1
Claim Your Seller Account
12-Inch Stroke Linear Potentiometer Sensor - 0-10V Output DC Voltage
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear motion systems with the 27mm Outside Diameter Linear Potentiometer Replacement Sensor. Manufactured by Alliance Sensors Group, this sensor offers precise stroke measurement up to 12 inches with a reliable 0 to 10V DC output. Designed with durable aluminum material, it operates seamlessly in temperatures ranging from -40 to 105 ºC. With exceptional linearity (<0.25% of Full Scale) and high resolution (0.025% of Full Scale), this sensor ensures accurate feedback for improved performance. CE Approved, this sensor is ideal for applications requiring quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
12 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
12 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
