12-Inch Stroke Rod Ends Linear Potentiometer Replacement Sensor
12-Inch Stroke Rod Ends Linear Potentiometer Replacement Sensor
SKU:LIN-f5b0a1
Upgrade to 12-Inch Stroke Linear Potentiometer Replacement Sensor for precise measurements and CE-approved reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
12-Inch Stroke Rod Ends Linear Potentiometer Replacement Sensor
$129.99
Quantity: 1
Claim Your Seller Account
12-Inch Stroke Rod Ends Linear Potentiometer Replacement Sensor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

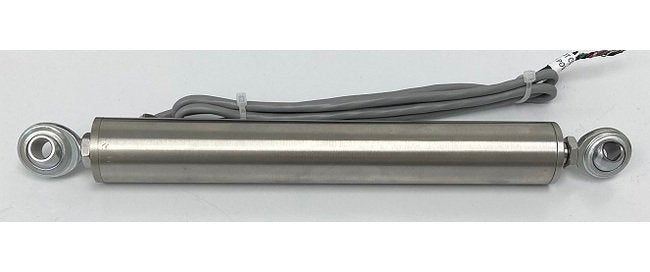

Upgrade your linear potentiometer with the 12-inch stroke rod ends replacement sensor. Designed by Alliance Sensors Group, this stainless steel sensor features an outside diameter of 27mm and outputs 0-10V DC voltage. With a temperature range of -40 to 105°C and CE approval, enjoy precise measurements with <0.25% linearity and 0.025% resolution. Ideal for industrial and institutional applications.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Length
1 m
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
12 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
12 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
