12 Inch T-Handle Aluminum Test Plug with By-Pass
12 Inch T-Handle Aluminum Test Plug with By-Pass
SKU:HIG-a57b0e
High-quality 12" T-Handle Aluminum Test Plug for reliable and safe pressure testing in construction and sewer applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12 Inch T-Handle Aluminum Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
12 Inch T-Handle Aluminum Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12 Inch Nominal Diameter T-Handle Aluminum Test Plug with By-Pass from the 143-7 Mechanical T-Handle Aluminum Test Plugs series is an essential tool for various applications. Constructed with a heavy-duty aluminum body and a chemical-resistant neoprene seal, this plug is designed for durability and reliability. Ideal for sewer air pressure tests and long-term use, it features a 3/4 in MNPT By-Pass Diameter and can withstand up to 5 psi air pressure and 40 ft liquid head pressure. Ensure safety by adhering to mechanical plug warnings for maximum effectiveness. Sizes 6" to 12" are specifically tailored for concrete, clay, and SDR 26 & 35 pipe compatibility, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

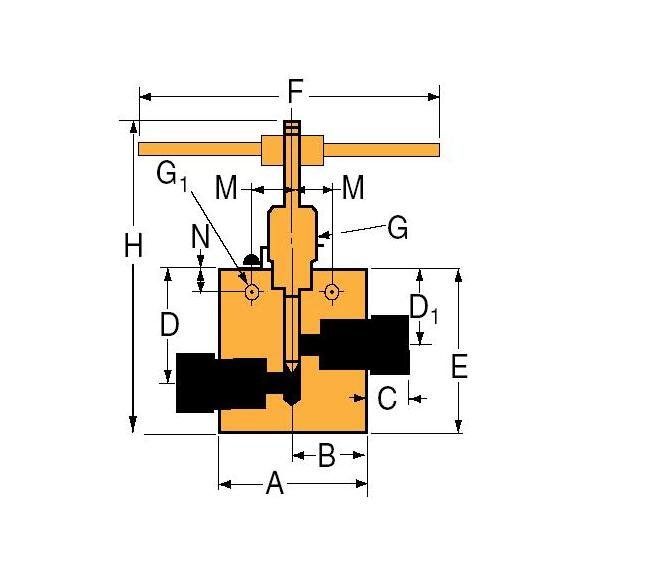

Specifications A Width
4.88 in | 123.96 mm
Specifications Block Thickness
2.25 in | 57.15 mm
Specifications B Length
2.44 in | 61.96 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
2.75 in | 69.85 mm
Specifications D Height
3.50 in | 88.90 mm
Specifications E Height
4.44 in | 112.77 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
8.61 in | 218.69 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.6
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
