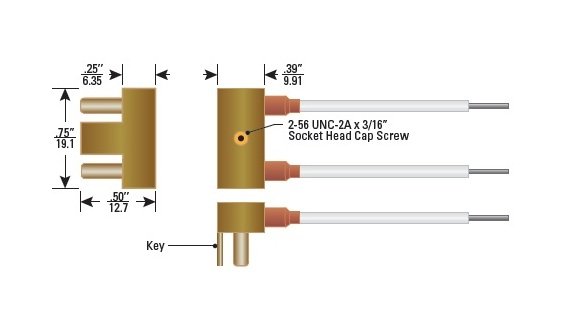

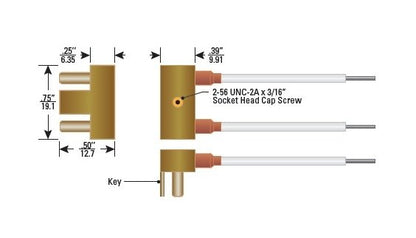

12 kVDC 2 Pin Right Angle Plug Cable Assembly - Pee-Wee Series
12 kVDC 2 Pin Right Angle Plug Cable Assembly - Pee-Wee Series
SKU:HIG-cf1bb3
High-voltage 2 Pin Right Angle Plug Cable Assembly rated at 12 kVDC, ideal for dense electronic packaging. Threaded/jack screw coupling, etched FEP insulation with NOMEX® Jacket, suitable for lasers, power supplies, and more.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12 kVDC 2 Pin Right Angle Plug Cable Assembly - Pee-Wee Series
$89.99
Quantity: 1
Claim Your Seller Account
12 kVDC 2 Pin Right Angle Plug Cable Assembly - Pee-Wee Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12 kVDC 2 Pin Right Angle Plug Cable Assembly from the Pee-Wee Series is a subminiature, high-voltage connector designed for high voltage applications requiring dense electronic packaging. Featuring Teledyne Reynold's Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet with a wide temperature range of -55 to 125 °C. With specifications like threaded or jack screw coupling, etched FEP wire insulation with NOMEX® Jacket, and soldering bucket accommodating 22 AWG max, this nonstandard part is ideal for applications such as lasers, power supplies, photomultipliers, and TWT.
Product Specifications
Application 0
LasersPower SuppliesPhotomultipliersTWT
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Size
22 AWG
Contact Properties Contact Type
Female
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Current Rating
5 A
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates with Pee-Wee series two pin receptacle cable assemblies.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
PeeWee
Specifications Soldering Bucket
Accommodates 22 AWG max.
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Diameter
0.050 in
Specifications Wire Insulation
Etched FEP with NOMEX® Jacket
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Etched FEP
Wire Specifications Insulator Diameter
0.050 in | 1.27 mm
Wire Specifications Jacket Material
Nomex®
Wire Specifications Operating Voltage
18 kVDC
