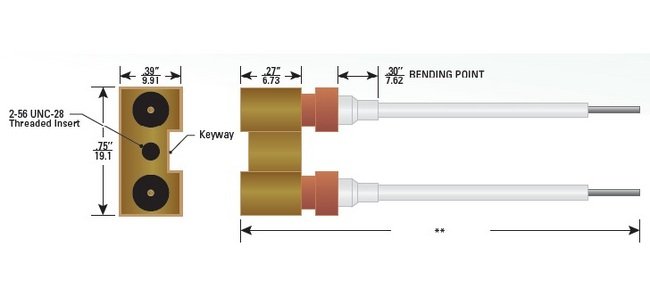

12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly
12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly
SKU:HIG-4f188c
High-voltage 2 Pin Cable Assembly for compact, high-altitude applications. Threaded/jack screw coupling, brass contacts with gold finish. Rated for 12 kVDC.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly
$189.99
Quantity: 1
Claim Your Seller Account
12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly from the Pee-Wee Series is designed for high-voltage applications requiring compact electronic integration. Featuring Teledyne Reynold's Advanced Interface⢠technology, this connector is rated for 12 kVDC at altitudes of up to 70,000 ft with an operating temperature range of -55 °C to 125 °C. With a threaded or jack screw coupling style, etched FEP with NOMEX® jacket wire insulation, and brass contacts with gold finish, this assembly ensures secure high-voltage connectivity in demanding environments. Contact Teledyne Reynold's Engineering for custom design options.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
PeeWee
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP with NOMEX® Jacket
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Etched FEP
Wire Specifications Insulator Diameter
0.050 in | 1.27 mm
Wire Specifications Jacket Material
Nomex®
Wire Specifications Operating Voltage
18 kVDC
