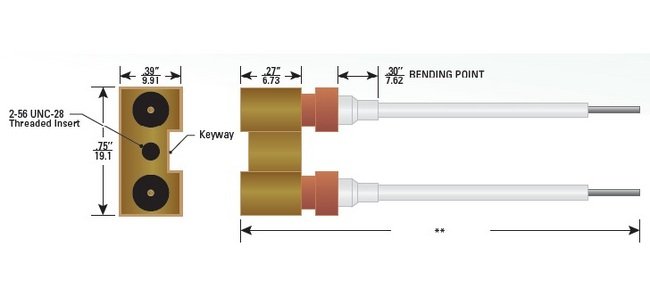

The 12 kVDC 2 Pin Single-Ended Receptacle Cable Assembly from the PeeWee Series is a subminiature, high-voltage connector designed for high voltage applications in densely packed electronic setups. Utilizing Teledyne Reynold's Advanced Interface™ technology, this connector ensures high voltage sealing at reduced atmospheric pressure, enabling a voltage rating of 12 kVDC at altitudes up to 70,000 feet. With an operating temperature range of -55 °C to 125 °C, insulator material made of plastic, and wire insulation featuring silicone-coated FEP with a NOMEX® jacket, this assembly offers superior performance and reliability.
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
PeeWee
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP with NOMEX® Jacket
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Silicone Coated FEP
Wire Specifications Insulator Diameter
0.060 in | 1.52 mm
Wire Specifications Jacket Material
Nomex®
Wire Specifications Operating Voltage
18 kVDC
