12 kVDC Double-Ended Plug Cable Assembly with NOMEX®
12 kVDC Double-Ended Plug Cable Assembly with NOMEX®
SKU:HIG-d1e0fa
12 kVDC Double-Ended Plug Cable Assembly, Push-Pull Coupling, Ideal for High Voltage Applications
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12 kVDC Double-Ended Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Claim Your Seller Account
12 kVDC Double-Ended Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

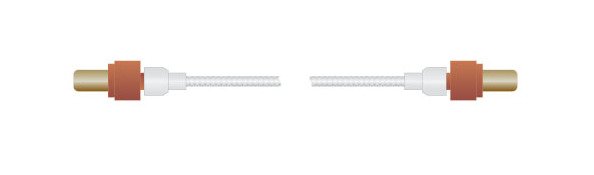

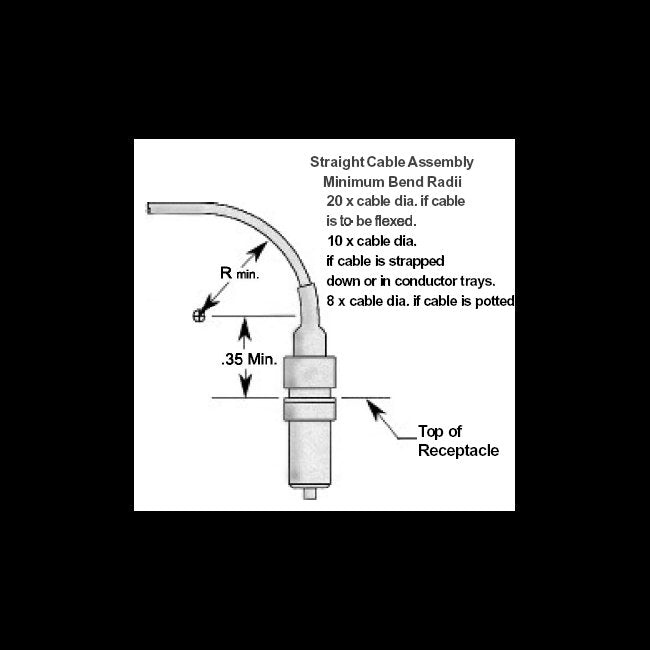

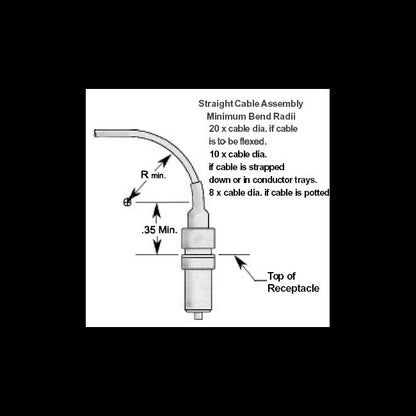

The 12 kVDC Double-Ended Plug Cable Assembly from the PeeWee Series is a subminiature high-voltage connector designed for dense electronic packaging in high voltage applications. Utilizing Teledyne Reynold's Advanced Interface™ method, this connector is rated for 12 kVDC at 70,000 feet with a wide temperature range of -55°C to 125°C, making it ideal for various applications like lasers, photomultipliers, and power supplies. With a push-pull coupling style and compatibility with all non-threaded Pee-Wee series receptacles, this assembly ensures reliable and secure connections in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP W/NOMEX
Specifications Wire Pn
178-8118
