12 kVDC Pee-Wee Series 2-Pin Receptacle Cable Assembly
12 kVDC Pee-Wee Series 2-Pin Receptacle Cable Assembly
SKU:HIG-ec6bb5
High-voltage 2-pin cable assembly with 12 kVDC rating, ideal for dense electronic packaging. Ensures high performance at extreme altitudes with advanced sealing technology.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
12 kVDC Pee-Wee Series 2-Pin Receptacle Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
12 kVDC Pee-Wee Series 2-Pin Receptacle Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

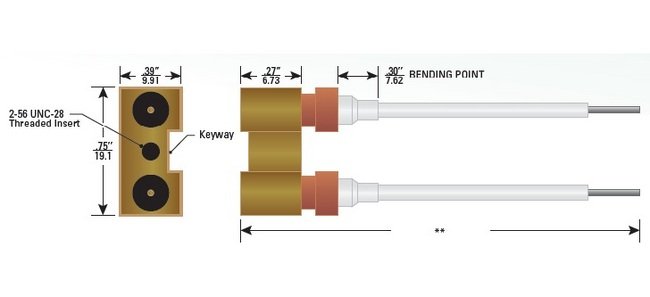

The 12 kVDC Pee-Wee Series 2-Pin Receptacle Cable Assembly is designed for high-voltage applications requiring compact electronic packaging. Featuring Teledyne Reynold's patented Advanced Interface™ sealing method, this assembly ensures reliable performance at altitudes of up to 70,000 ft. With an operating temperature range of -55 to 125°C and a voltage rating of 12 kVDC, it offers exceptional durability and safety. The assembly's insulator material is plastic, and the coupling can be threaded or jack screw. Suitable for both institutional and consumer buyers, it comes with a single-ended design for easy installation.
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
PeeWee
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Etched FEP
Wire Specifications Insulator Diameter
0.050 in | 1.27 mm
Wire Specifications Operating Voltage
18 kVDC
