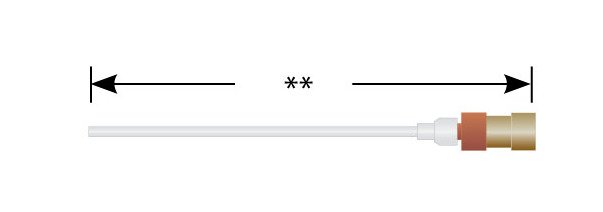

The 12 kVDC PeeWee Series Receptacle Cable Assembly is a subminiature, high-voltage connector designed for applications requiring dense electronic packaging. Featuring Teledyne Reynold's Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet altitude with a wide temperature range of -55 to 125°C. With a push-pull coupling style, silicone rubber interface seal, and gold-plated BeCu contacts, this assembly ensures reliable high-voltage performance in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Straight Receptacle Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
